Product Description
NOTE: These are only verified compatible with SPAL brushless fans only. Not for use with OEM brushless or other brands. NO RETURNS ON THIS ITEM.

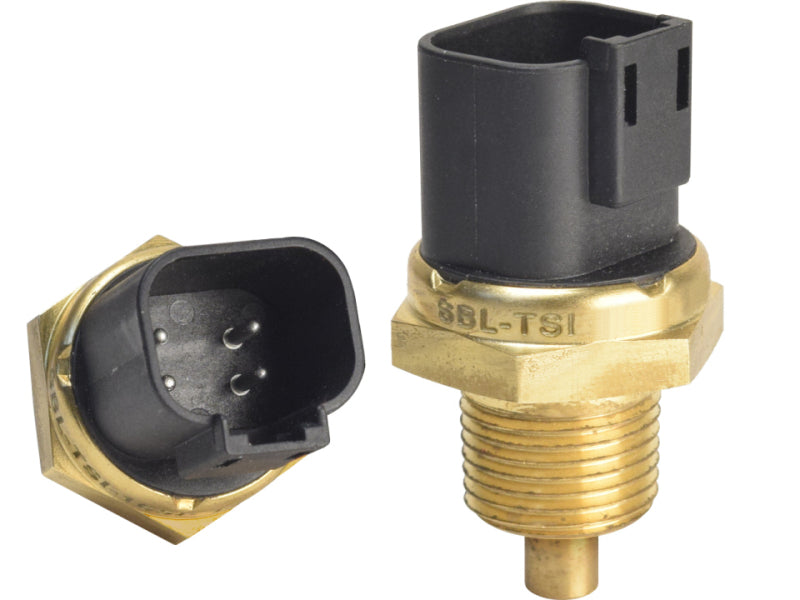

PN: SBL-TSI-xxxP
SBL-TSI-165P: 140*F off, 165*F Full Speed
SBL-TSI-185P: 165*F off, 185*F Full Speed
SBL-TSI-195P: 175*F off, 195*F Full Speed (2nd Most Common)
SBL-TSI-215P: 190*F off, 215*F Full Speed (Most common)
Thread: 3/8 NPT
NOTE: Requires use of SBL-TS-HARN
Supersedes Spal Part Numbers SBL-TS-xxxP
Features
-
Designed specifically for SPAL brushless fan control systems
-
Precision temperature-based fan activation for consistent cooling performance
-
Available in four temperature ranges to match different engine and cooling system requirements
-
Compatible with SPAL brushless fan controllers and wiring systems
SPAL brushless fan control temperature sensors allow you to fine-tune when your cooling fans activate, ensuring optimal temperature control for your specific application. By selecting the correct temperature range, you can improve cooling efficiency, reduce unnecessary fan operation, and maintain stable engine temperatures under varying driving conditions.
Whether you need early fan engagement for aggressive performance setups or higher activation temperatures for heavy-duty or endurance use, these sensors provide precise, repeatable control you can rely on. Built to SPAL’s high standards, they are an essential component for maximizing the effectiveness and reliability of any brushless fan cooling system. The fans will startout at 10% speed at the lower temprature of the sensor and will ramp up to full speed at the higher tremp of the sensor.
Uses a standard Deutsch DT06-4S DT Series 4 socket plug. The Plus series fans are Spal's 2nd generation brushless motor. If you use the incorrect sensor for your brushless fan, the behavior of the fan is inverted. With the incorrect sensor, at low temperatures the fan turns on at FULL speed. As the vehicle temperature increases the fan would SLOW DOWN.
Here is a list of Plus Series brushless fans used with the above sensor:
- Spal part number 30107089 with motor number VA109-ABL321P/N-109A/SH
- Spal part number 30107059 with motor number VA99-ABL315P/N-101A/SH
- Spal part number 30107087 with motor number VA89-ABL320P/N-94A
- Spal part number 30107138 with motor number VA90-ABL320P/N-94A
- Spal part number 30107103 with motor number VA116-ABL324P-105A
- Spal part number 30107102 with motor number VA116-ABL505P-105A
- Spal part number 30107125 with motor number VA91-ABL326P/N-65A
- Spal part number 30107090 with motor number VA97-ABL322P/N-103A
- Spal part number 30107101 with motor number VA117-ABL506P/N-103A
- Spal part number 30107328 with motor number VA207-ABL523P/R/A/N-65A
NOTE: When using multiple fans only one sensor and one SBL-TS-HARN is needed plus one SBL-YAZ-PT10 for each fan. Up to 12 fans can be ran off of one sensor!
