This Corvette style accessory drive system from GM is an inexpensive solution for adding power steering & an alternator to your LS swap.

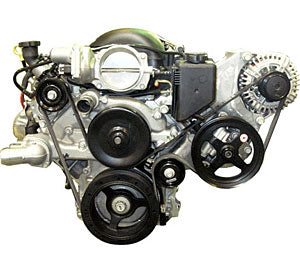

Corvette Accessory Drive System, without A/C
• Fits all Non-LSA and LS9 LS-type engines (We at PTS have an LSA accessory drive kit that does work with this kit, however! The reservoir for power steering will not work though).
• Most harmonic balancers do not line up correctly with the accessory drive system; damper P/N 12620556 is strongly recommended. This is the Corvette / G8 spacing which is closest to the block. Will not work with F-Body spacing, or Camaro/Truck spacing balancers!!!
• Direct bolt-on for LS3 & LS7 engines
NOTE: Use on LS327 iron block engine requires harmonic balancer P/N 12674582.
NOTE: Water pump P/N 12710208 NOT Included with kit.
NOTE: Will not work with cam-phased engine (aka VVT)
The system includes:
12555222 (1) Bracket–Power Steering Fluid Reservoir
12578067 (1) Bracket–Generator and Power Steering Pump
25888970 (1) Generator
25960709 (1) Pump–Power Steering
12568997 (1) Pulley–Power Steering Pump
12555693 (1) Brace–Power Steering Pump Front
15907878 (1) Hose–Power Steering Fluid Reservoir With Clamps
26046502 (1) Reservoir–Power Steering Fluid
12569301 (1) Tensioner–Drive Belt
12568996 (1) Pulley–Belt Idler
12636226 (1) Belt–Water Pump/Generator/Power Steering Pump
11515768 (2) Bolt-10x1.5x40mm - 15mm Drive
11098341 (1) Bolt-10x1.5x110mm - 15mm Drive
12552922 (1) Bolt-10x1.5x160mm - 15mm Drive
11516357 (3) Bolt-10x1.5x75mm - 15mm Drive
11588745 (1) Bolt-10x1.5x65mm - 15mm Drive
11588751 (2) Bolt-10x1.5x95mm - Drive
11515758 (2) Bolt-8x1.25x30mm - 12mm Drive
10317982 (1) Cap-Power Steering Fluid Reservoir
11516697 (2) Bolt-8x1.25x85mm - 13mm Drive
