Intercooler Reservoir Tank - Universal 1 Gallon Capacity - Aluminum AN

$229.00

Note: May have a 1-2 week lead time if out of stock. We try our best to hold some inventory of raw and satin black though!

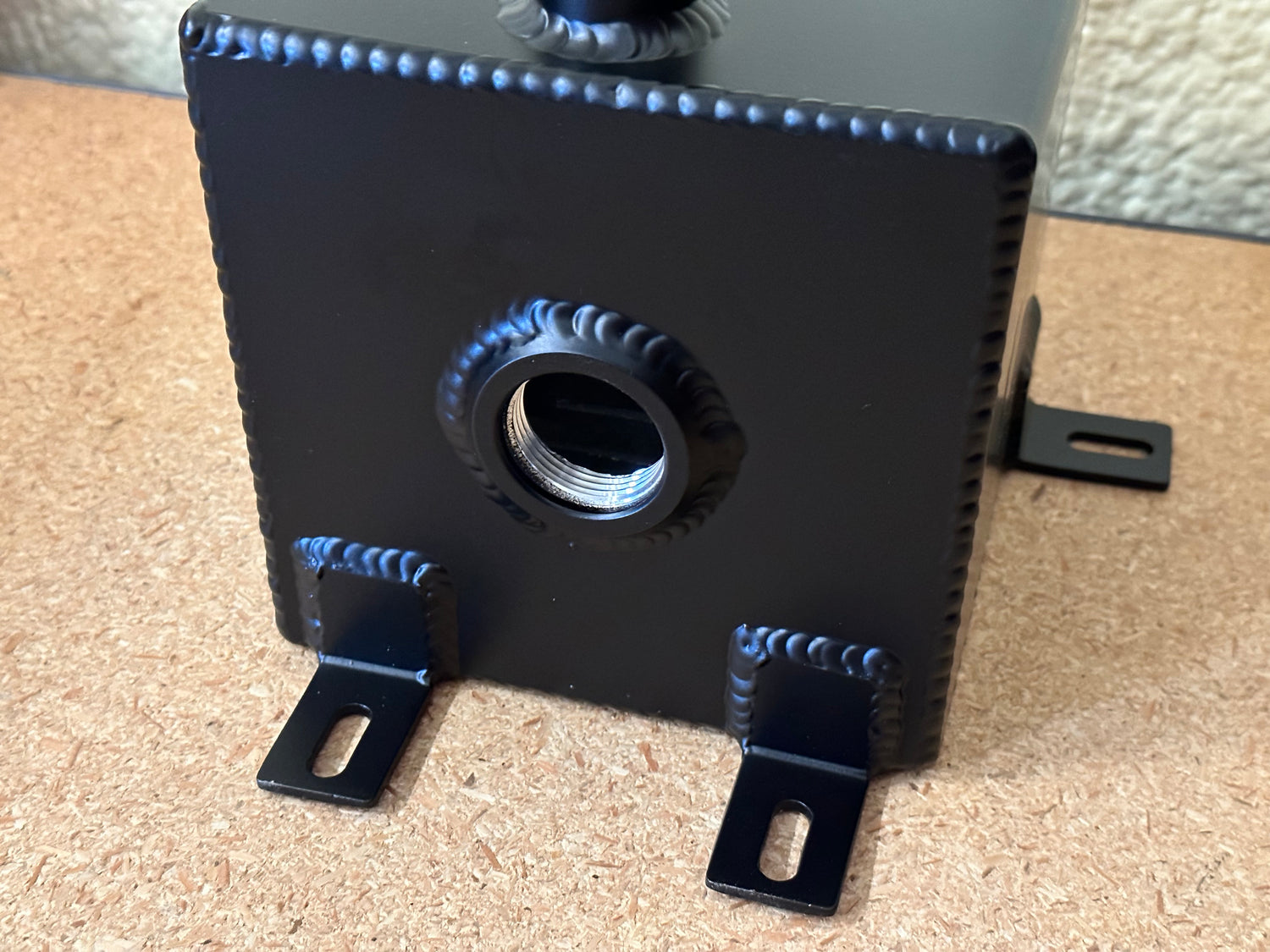

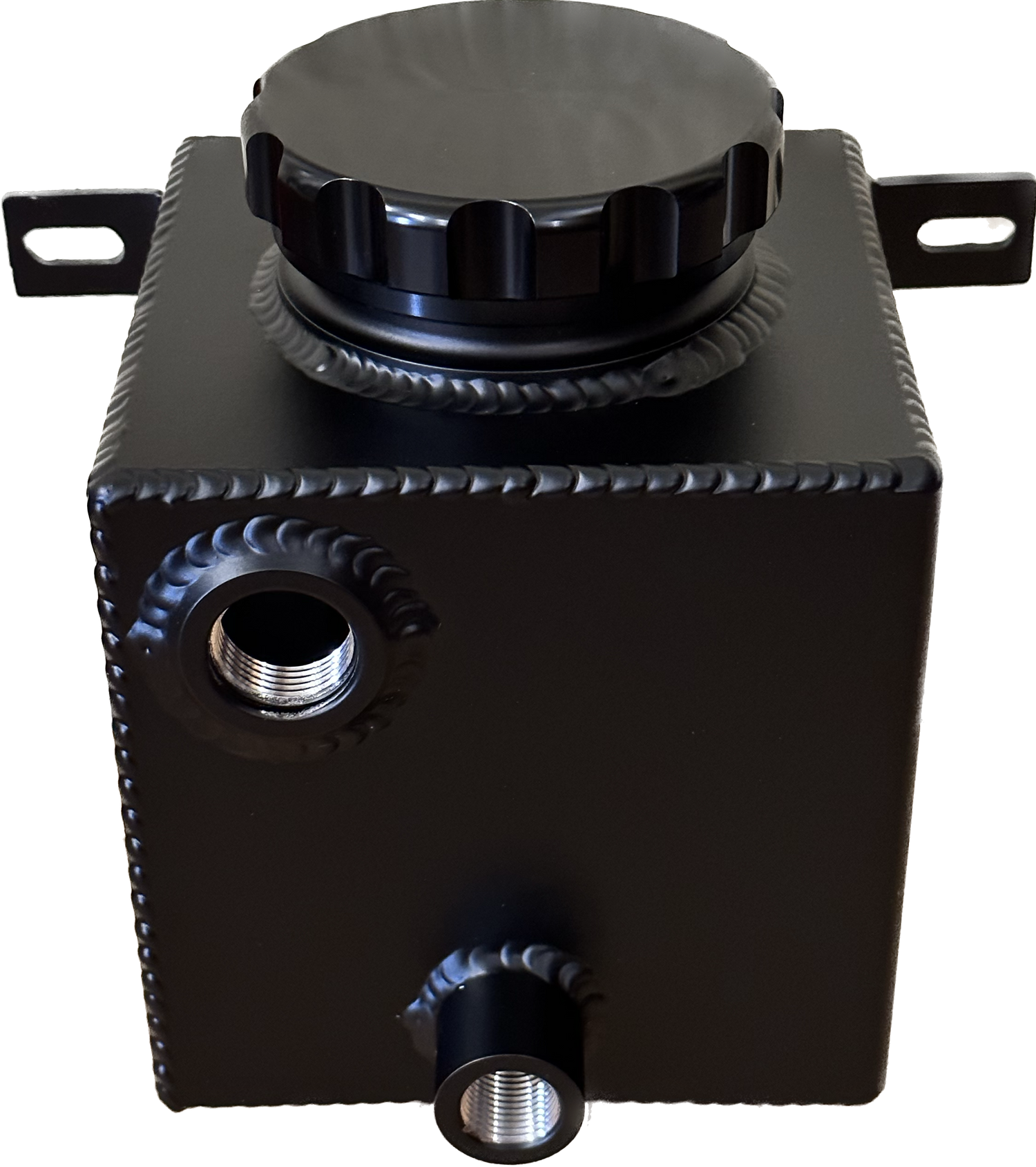

This universal coolant / intercooler tank is a great way to add 1 gallon of coolant to your air to water intercooler system. While these are most used with supercharged setups, it could also work with a turbo setup with an air to water intercooler. The tank is constructed of .125" 5052 aluminum and TIG welded, all in AMERICA! Inside you will find an ice screen to protect the pump impeller if you decide to ice it down at the track or dyno. These tanks also come standard with -16AN ORB female bottom feed, and -12AN ORB female return, for ultimate flexibility in plumbing your system!

These are also available with a Davis Craig EWP150 Coolant pump & appropriate feed fittings/hose. With enough demand, we will offer them on the website. If you're interested in the entire pump kit email us & we'll send you a few pics to make sure it'll work out for your application!

Body Dims 6" x 6" x 6"

Included:

- 1 Gallon Tank

- Billet 3" Filler Cap (allows for easy filling with ice if needed)

- 1/2 NPT Drain Valve

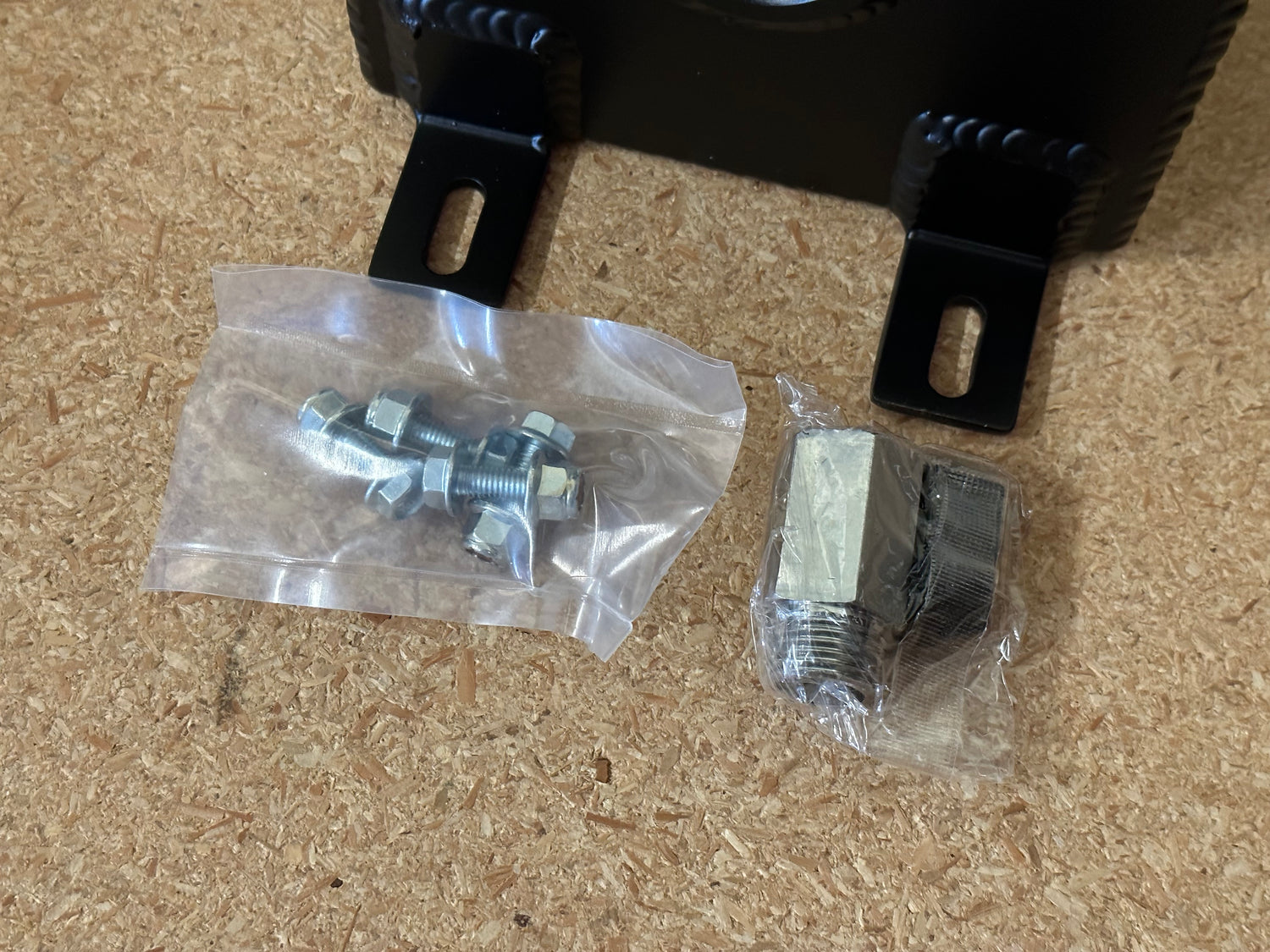

- Hardware for mounting

-NO fittings are included. We can provide ORB to barb or AN fittings if needed.
