Part number: 553-112
Holley's new 6.86" Pro Dash delivers over 200 monitoring channels of reliable real-time data in a more compact, full HD package suitable for nearly any motorsports application. Be assured that the Holley EFI 6.86" Pro Dash will deliver the vitals you need!

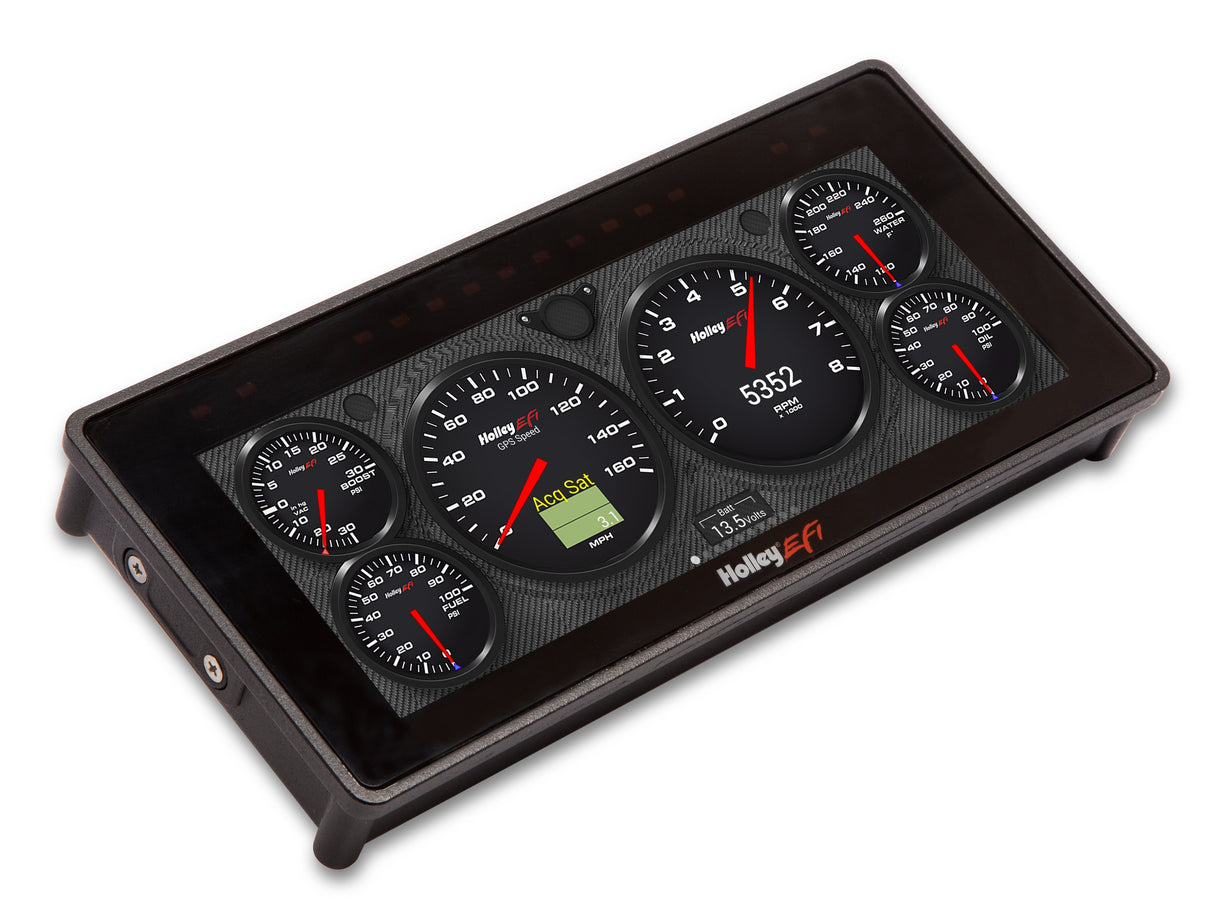

The 6.86" Pro Dash is completely customizable for use in a variety of motorsports applications. It features a 6.86" 1280x480 resolution low glare, high brightness, high contrast, full-color capacitive touch screen for easy viewing even in the sun, plug and play connection to all Holley EFI systems as well as a weatherproof aluminum housing featuring flexible mounting options. Monitor the power of your Holley EFI system at a glance! Holley EFI 6.86" Pro Dash includes everything needed for installation!
The Holley EFI 6.86" Pro Dash also features a plethora of inputs and outputs for expanded functionality of your Holley EFI installation. The included 34pin connector has 13 multi-configurable inputs for most Holley EFI sensors, such as pressure and temperature. Not using Holley EFI sensors? We still have you covered, these inputs are configurable, allowing you to utilize different sensor scaling calibrations! The Pro Dash also features two dedicated speed inputs, for RPM, Driveshaft speed, or any other Hall effect speed input. Need more outputs? The Pro Dash contains 4 ground switched outputs, that can be utilized with the switch panel feature to quickly turn on any of your auxiliary accessories, such as a master nitrous switch, or an electric water pump.

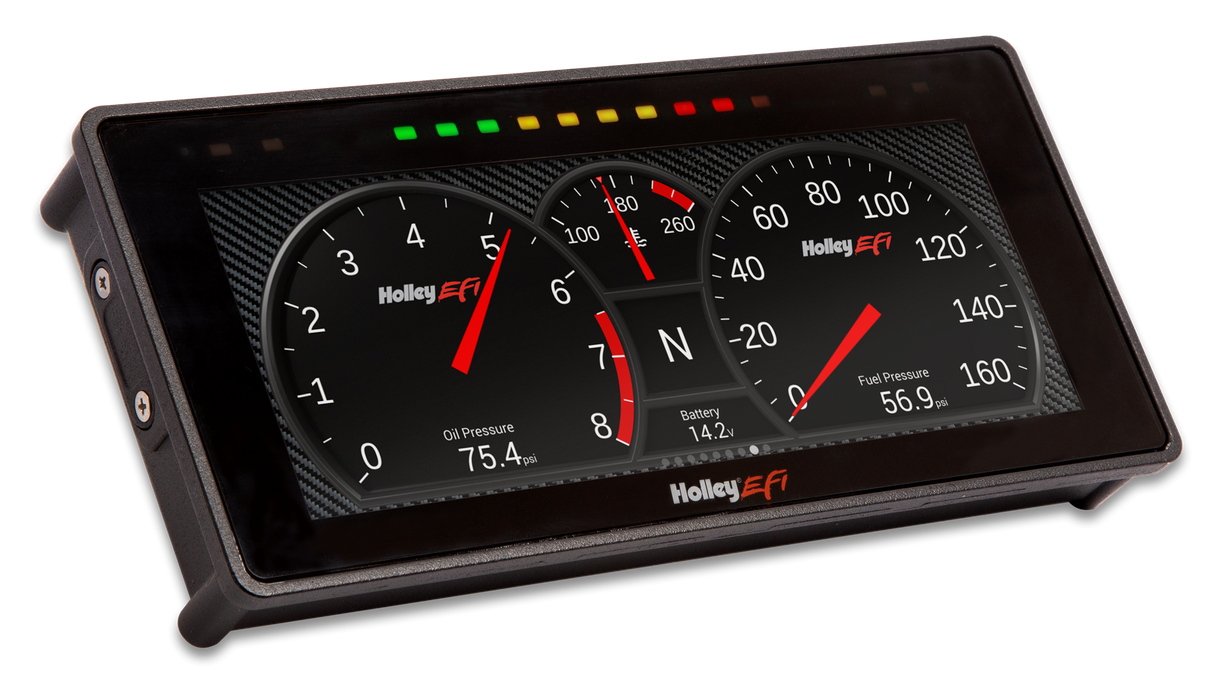

Holley has also integrated a 10-LED Programmable shift light into the bezel of the dash and added 4 optional LED's that can be programmed for virtually anything, such as fuel pressure or oil pressure warning indicators, or a target boost indicator, the options are almost endless.
- Plug-and-play Display support for Dominator, HP, Terminator X & Sniper EFI
- Integrated a 10-LED Programmable shiftlight w/ 4-LED warning indicators for other sensor inputs.
- Capable of monitoring up to 238 real-time values such as RPM/TPS/Boost
- 10 default background skins pre-loaded with unlimited options for importing custom layouts
- Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.)
- Virtual switch panel eliminates the need for external toggle switches
- Manual or auto-brightness features for easy viewing day or night
- Built-in GPS with odometer function (Antenna included)
- On-screen datalog playback features allows you to review vital run information
- Expandable storage via USB
- No stylus required, capacitive touch, just like your smart phone.
- User definable channel alarms and warnings
- 4x 10-32 mounting holes for surface or flush mounting, with high quality hardware included!
- Includes everything needed for installation!
- USB Keyboard and Mouse functionality makes it quick and easy to setup new layouts

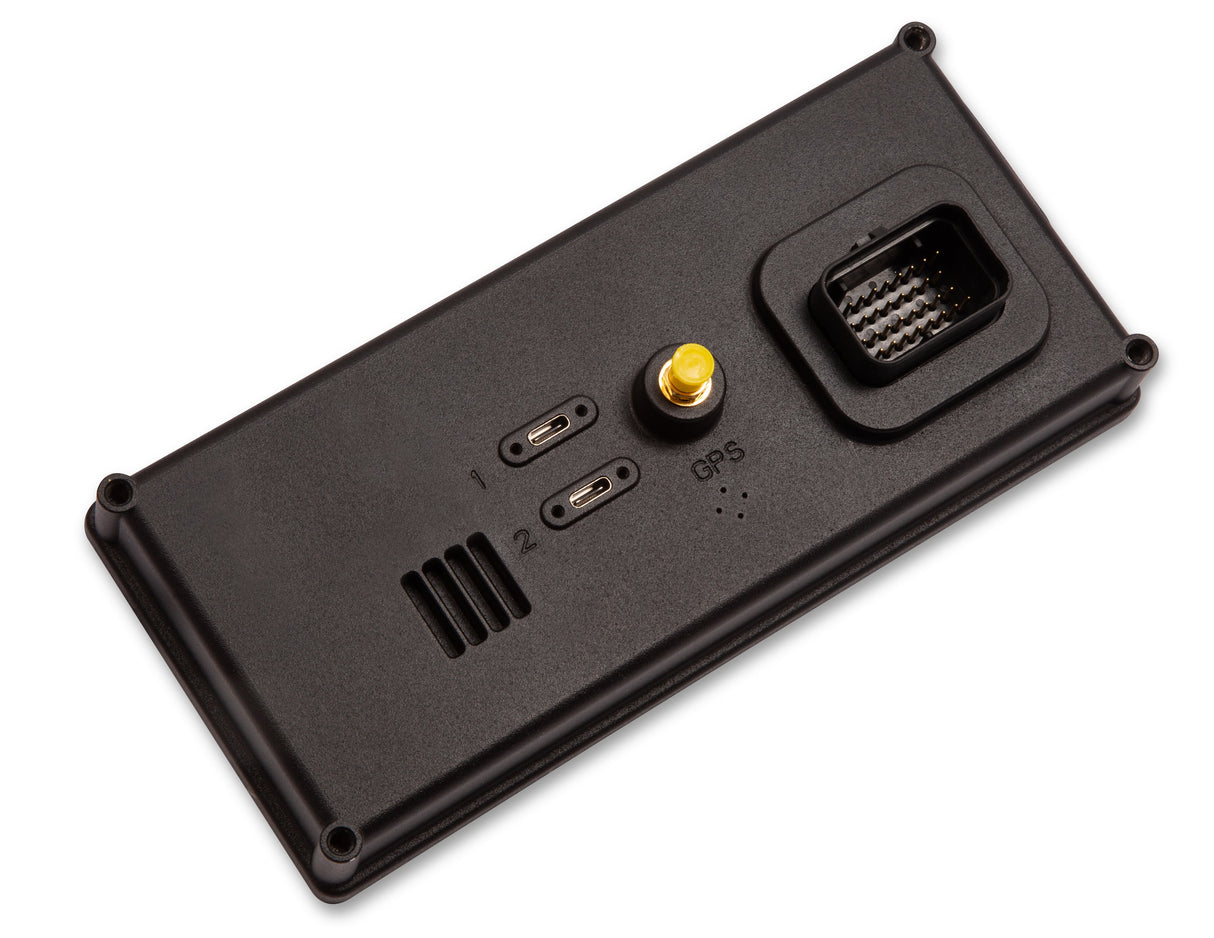

- Includes 34 Pin Wiring Harness contains Power, Ground and CANbus connections
- Input and output functionality for 13 multi-configurable inputs, and 4 ground switched outputs.
- User defined alarms for any input
- Upgradable with future software enhancements
- Viewing area is 6.86" on the diagonal
- Dash weight - 1.2 Lbs
- Real-time ECU tuning - HP/Dominator ECUs only
