Dakota Digital VHX Gauges for 1982-85 Chevy S10 GMC S15 Pickup - VHX-82C-S10

Part number: VHX-82C-S10

***Note from PTS***

Dakota gauges may have a lead time up to 20 weeks, contact us for actual availability , We have over 50 gauges on the shelf ready to ship!

From the ‘90s Mini-Truckin era, to performance street/strip phase, to the Resto-mod of today, S10 and S-15’s have had their place virtually everywhere.  Are mini-trucks coming back?  Are these little trucks the next big thing?  Only time will tell, but either way, they are here to stay and Dakota Digital has your solution to upgrade the dash.  The VHX Direct-fit package is a direct drop-in affair.  The included sensors make installation a breeze, while the various background and lighting colors allow this to coordinate with even the most custom S-Series.

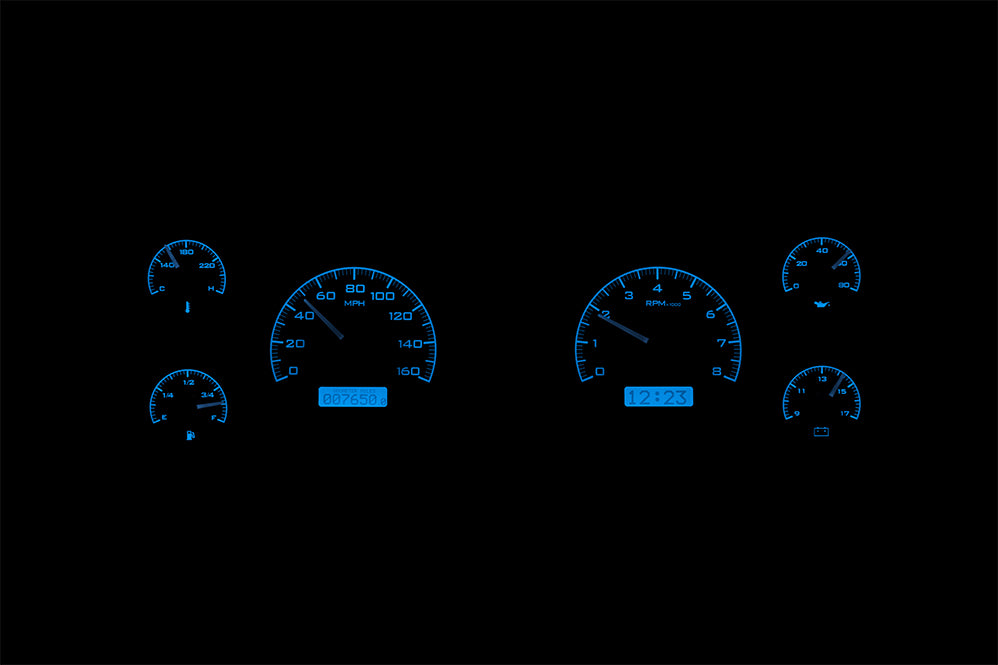

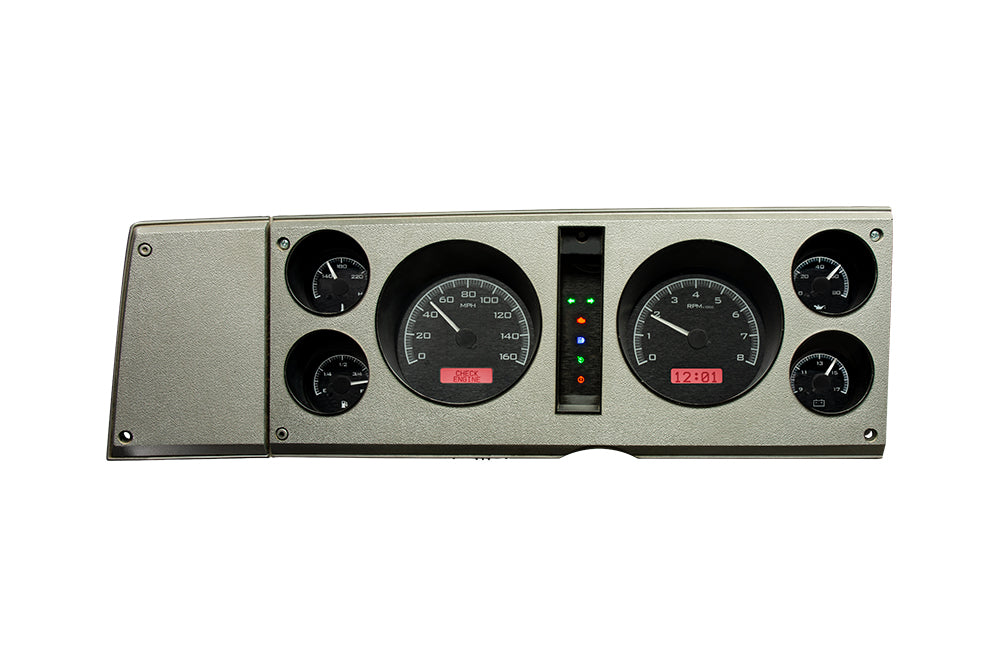

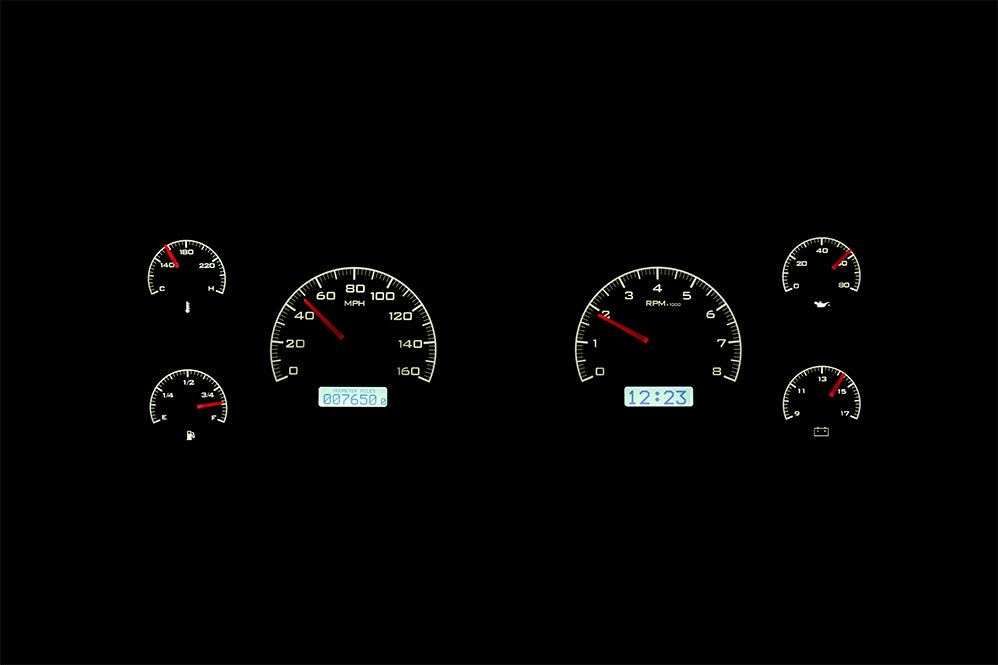

Fully lit needles, backlit faces, and two highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

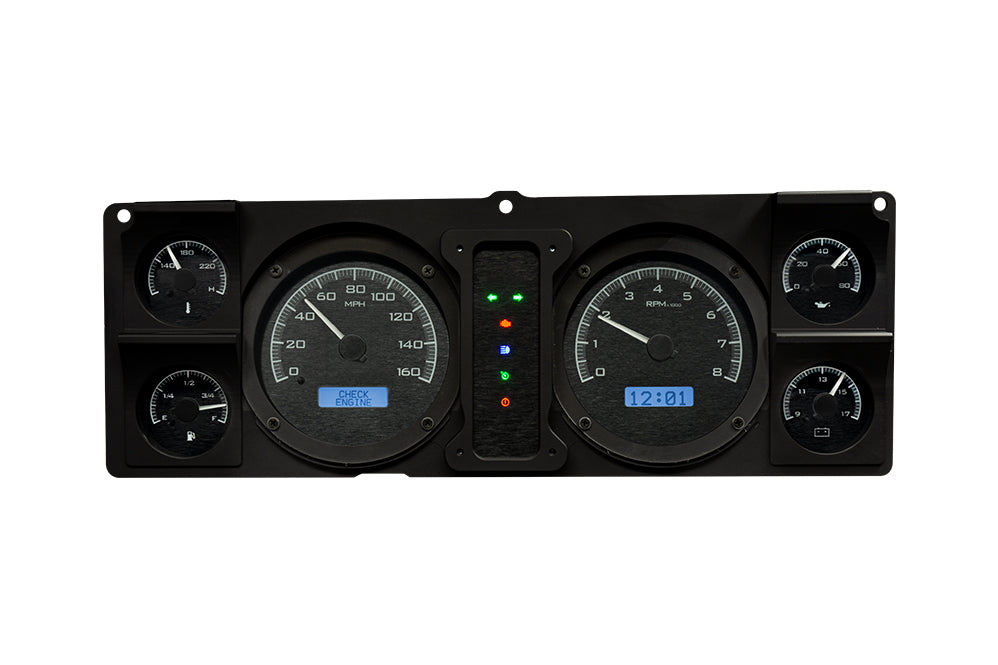

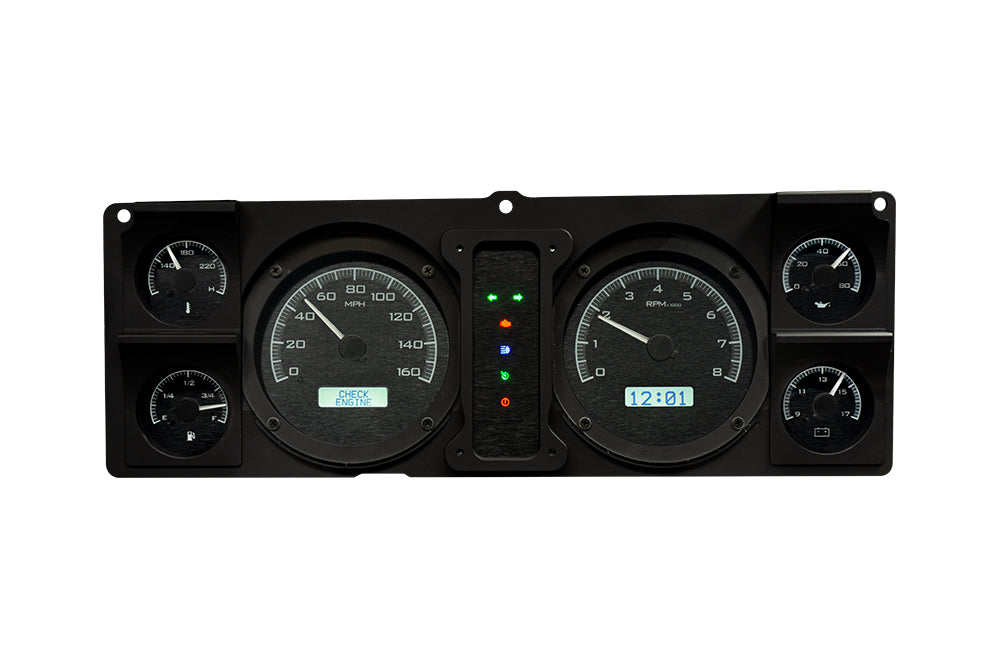

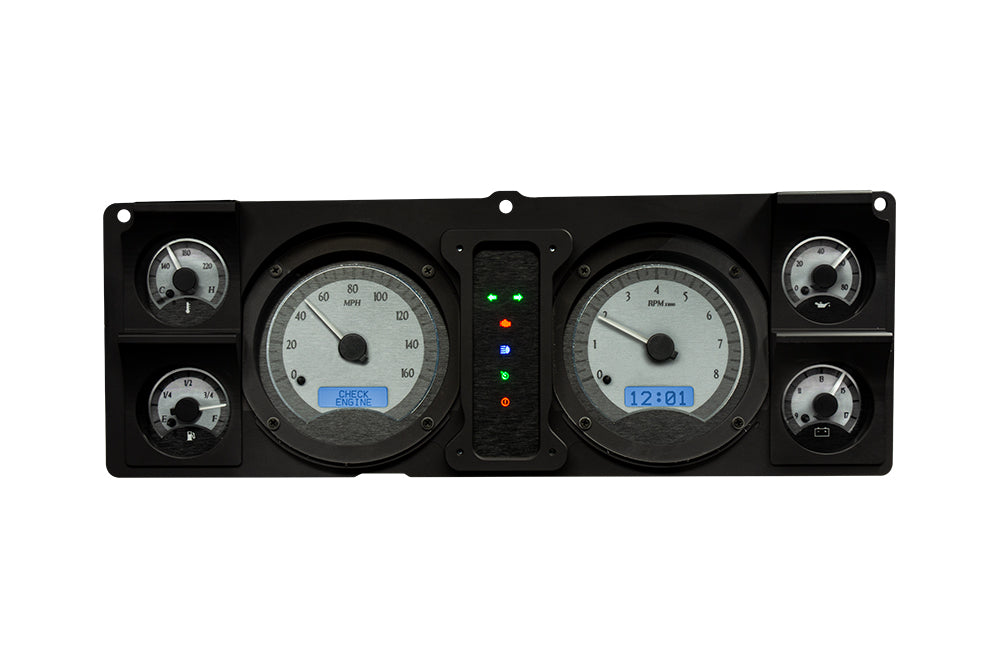

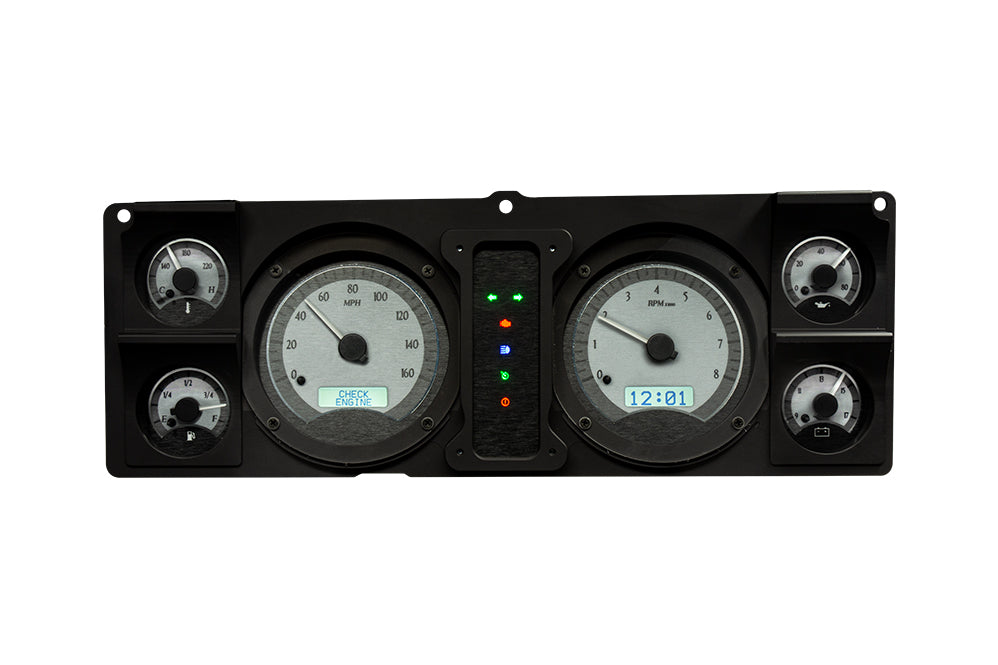

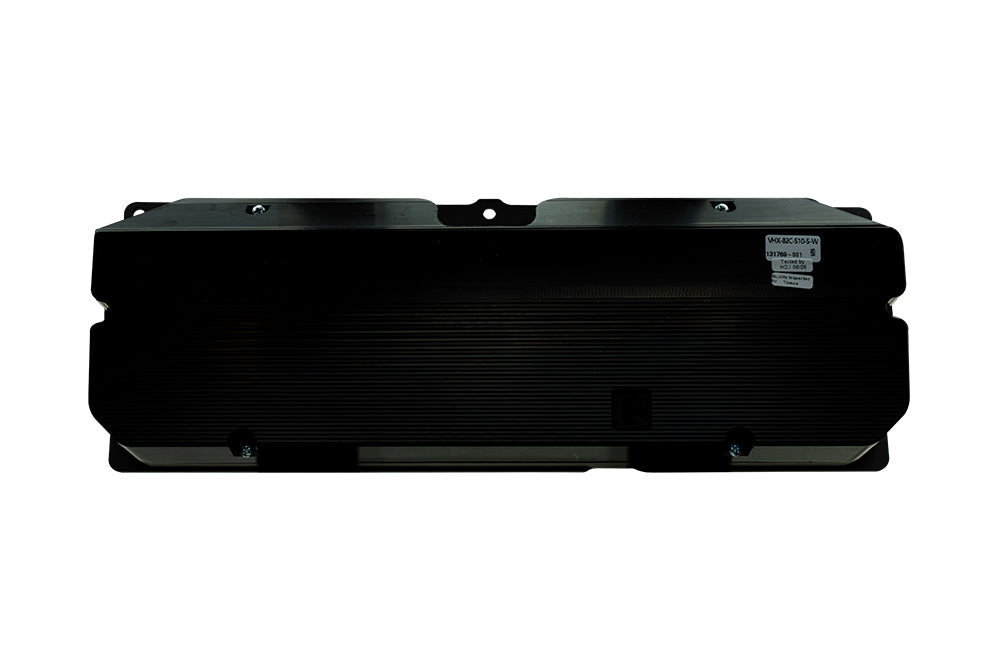

System replaces the entire factory instrument cluster and lens assembly, fully remade with a billet aluminum housing and optical grade polycarbonate lenses.

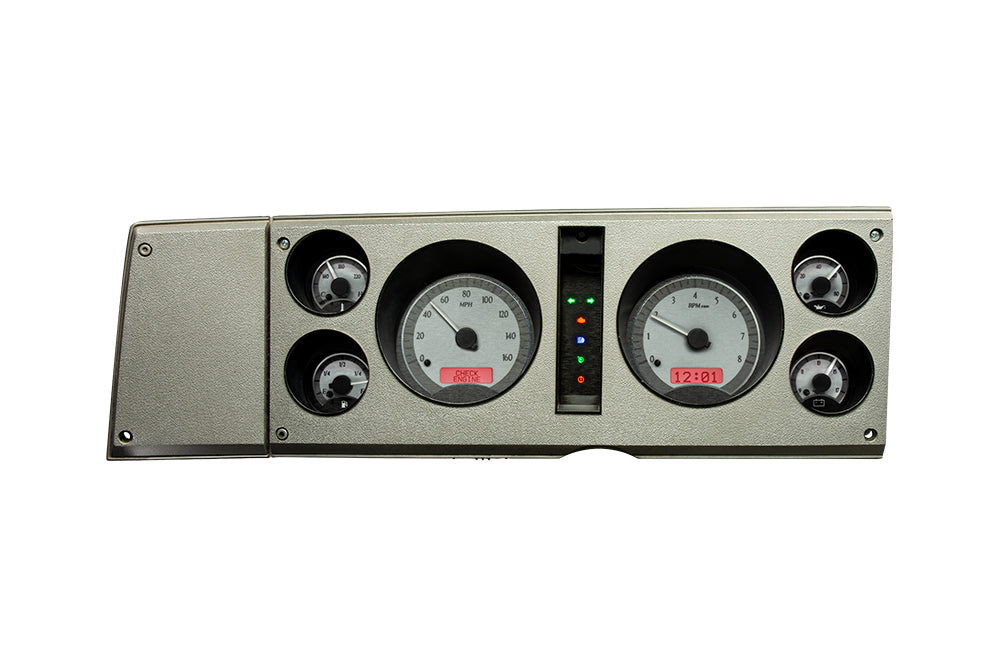

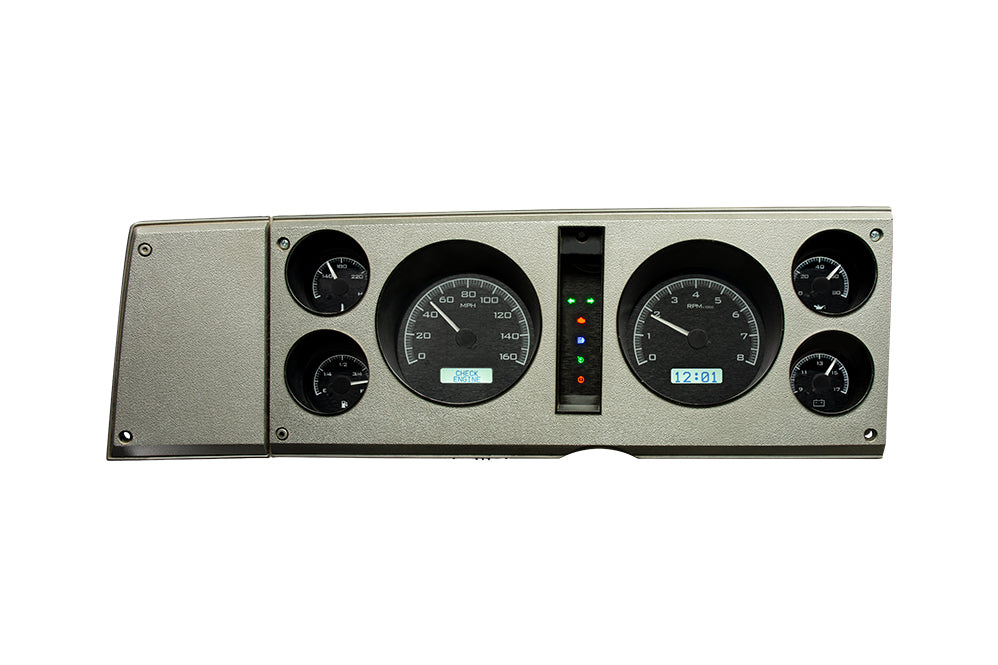

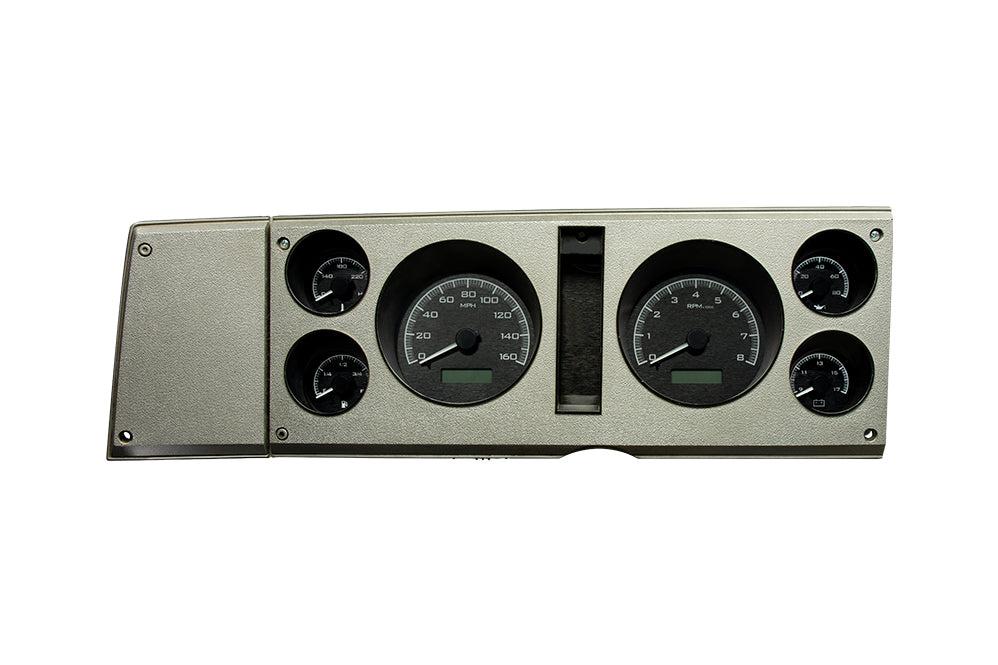

Full 6 Gauge Instrument System fits into OEM bezel for 1982- 1985 Chevy/ GMC S-10, S-15 Pickups and Blazers.

*System fits trucks with stock oil pressure and water temp gauges and without factory tachometer.

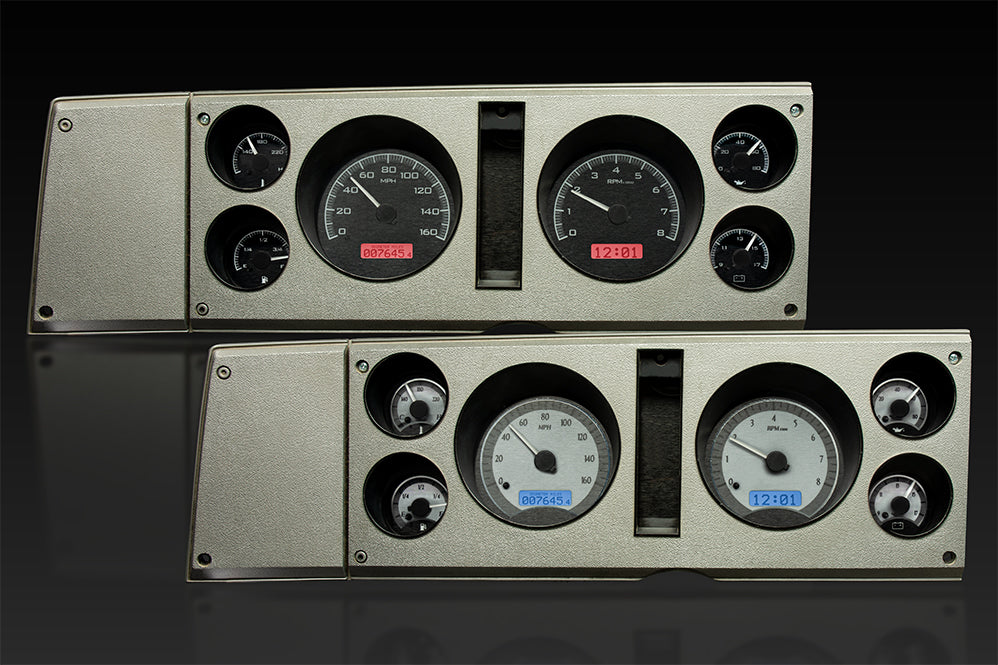

**Silver bezel not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.

Water Temperature

·1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure

·1/8" NPT solid state sensor with a 10 ft harness.

Cable Driven Speed Sensor/ Generator

·Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required. (Tremec and Ford style adaptors available on request.)

Bushings

·Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Control Box Dimensions

5.5" x 3.5"x 1"

Calibration

Pushbutton

·Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.
