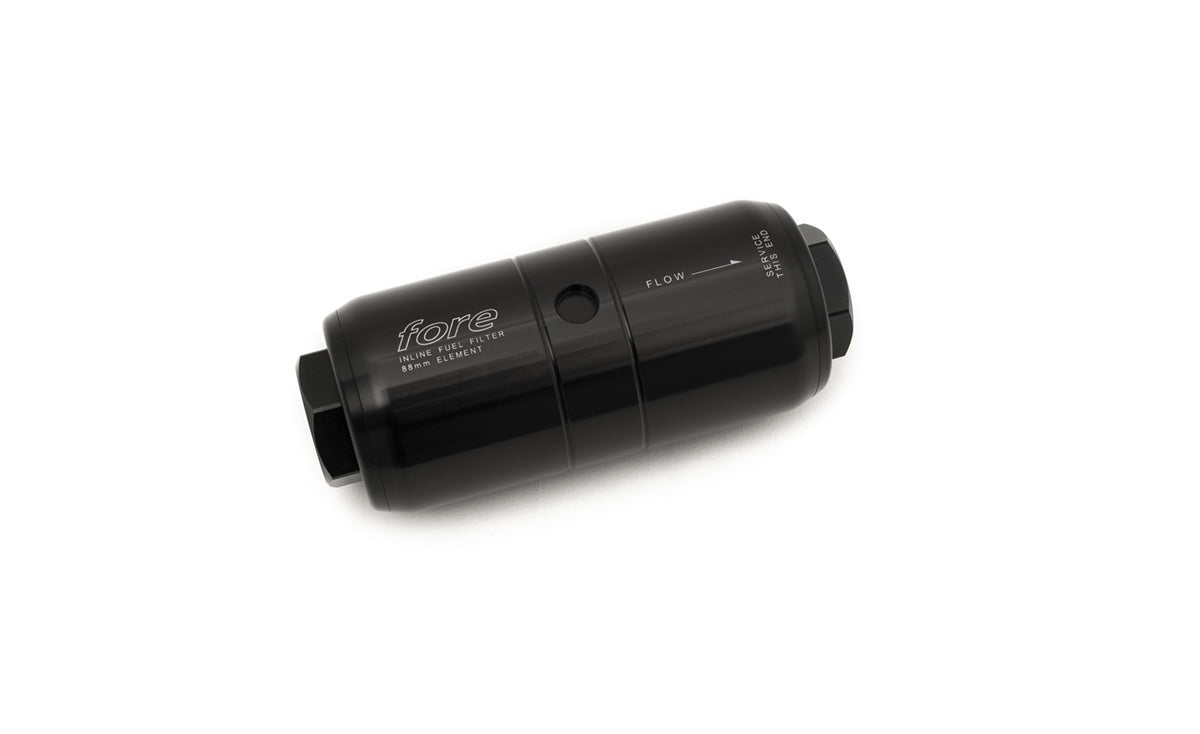

Fore Innovations is a leader in high performance fuel systems.
The base filter assembly includes a Cellulose filter element, 10 micron, safe for gasoline (up to E10). Choose microglass if you're going to run E85, or stainless steel if you want a reusable element.
The AN fitting ends are NOT included, you will have to purchase those separately:

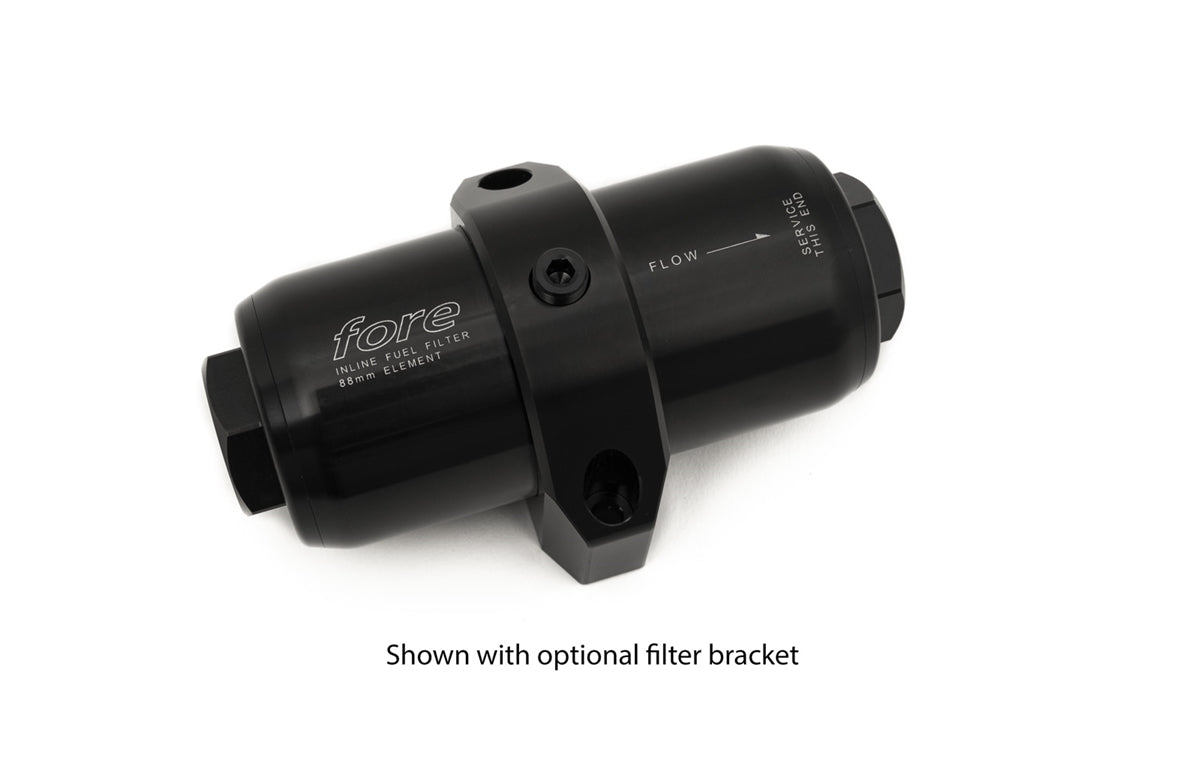

Choose a billet mounting bracket to be included, if needed. Otherwise you will need a clamp that will fit over the 2.2" diameter body.

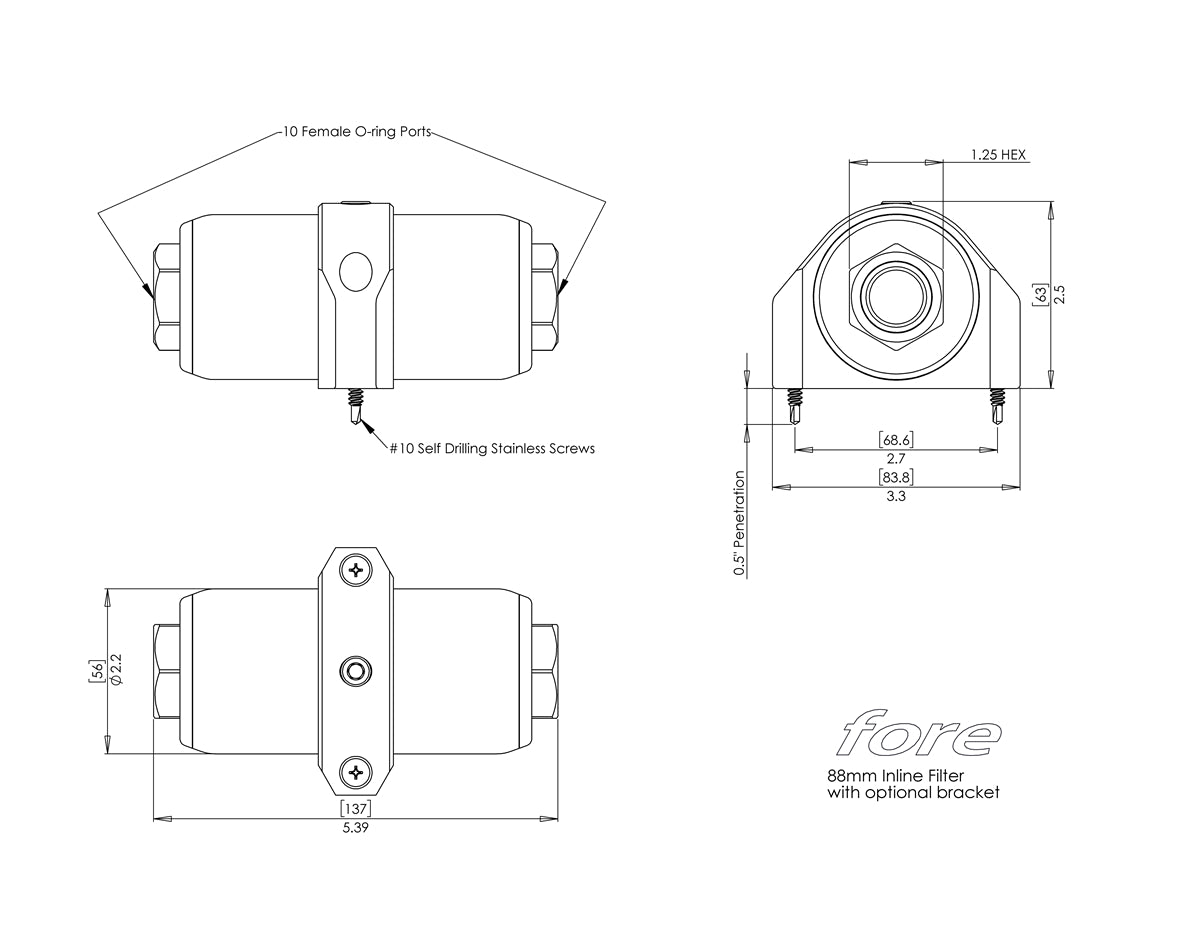

SPECIFICATIONS
- Filter media: cellulose, microglass SSD (anti-static), or stainless steel
- O-ring material: Viton
- Inlet and Outlet ports: -10 o-ring female
- Body Diameter: 2.2 inches
- Body Length: 5.4 inches
All Fore Innovations filtration media exceeds Bosch fuel injector filtration requirement
of 5µ, minimum 82% capture efficiency, and 35µ, 100% capture efficiency (ISO/TR 19438);
however, Injector Dynamics recommends finer filtration provided by our cellulose and
microglass SSD elements
of 5µ, minimum 82% capture efficiency, and 35µ, 100% capture efficiency (ISO/TR 19438);
however, Injector Dynamics recommends finer filtration provided by our cellulose and
microglass SSD elements
POOR FILTRATION MAINTENANCE WILL LEAD TO DEGRADED
FUEL SYSTEM PERFORMANCE AND CAN DESTROY FUEL PUMP(S)
CELLULOSE FILTER ELEMENT
CELLULOSE FILTER ELEMENT
- cellulose element, bonded aluminum endcaps, Viton o-ring
- provides 10 micron nominal, 14 micron absolute filtration
- use with gasoline and race gas
- disposable
- recommended filtration for use with Injector Dynamics fuel injectors
MICROGLASS SSD (ANTI-STATIC) FILTER ELEMENT
- microglass element, static dissipating, Viton o-ring
- provides 12 micron absolute filtration
- use with all fuel types and blends (i.e. gasoline, race gas, E85, E100, M5, diesel)
- disposable
- recommended filtration for use with Injector Dynamics fuel injectors
STAINLESS FILTER ELEMENT
- stainless element, stainless endcaps, Viton o-ring
- provides 10 micron nominal, 26 micron absolute filtration
- use with all fuel types and blends (i.e. gasoline, race gas, E85, E100, M5, diesel)
- re-usable
