Part Number: BP49613CTC

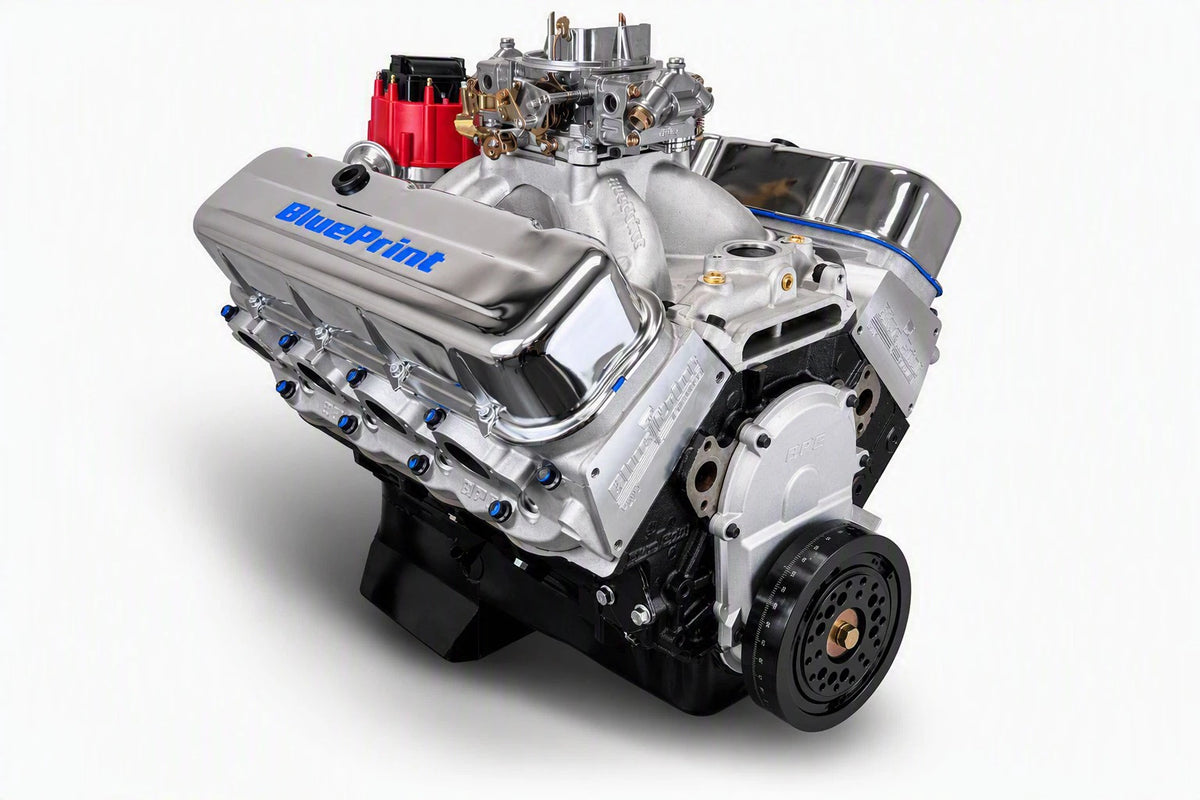

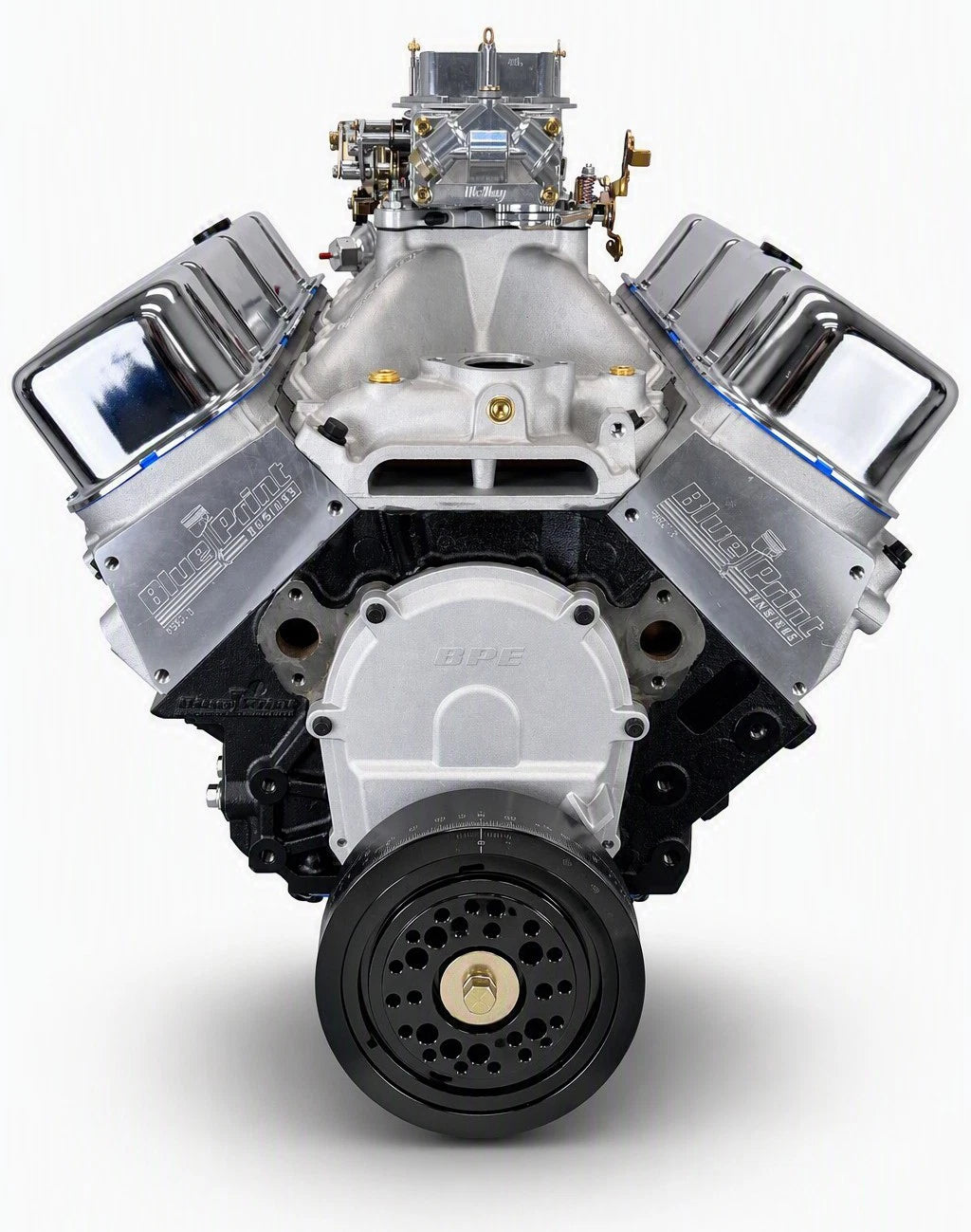

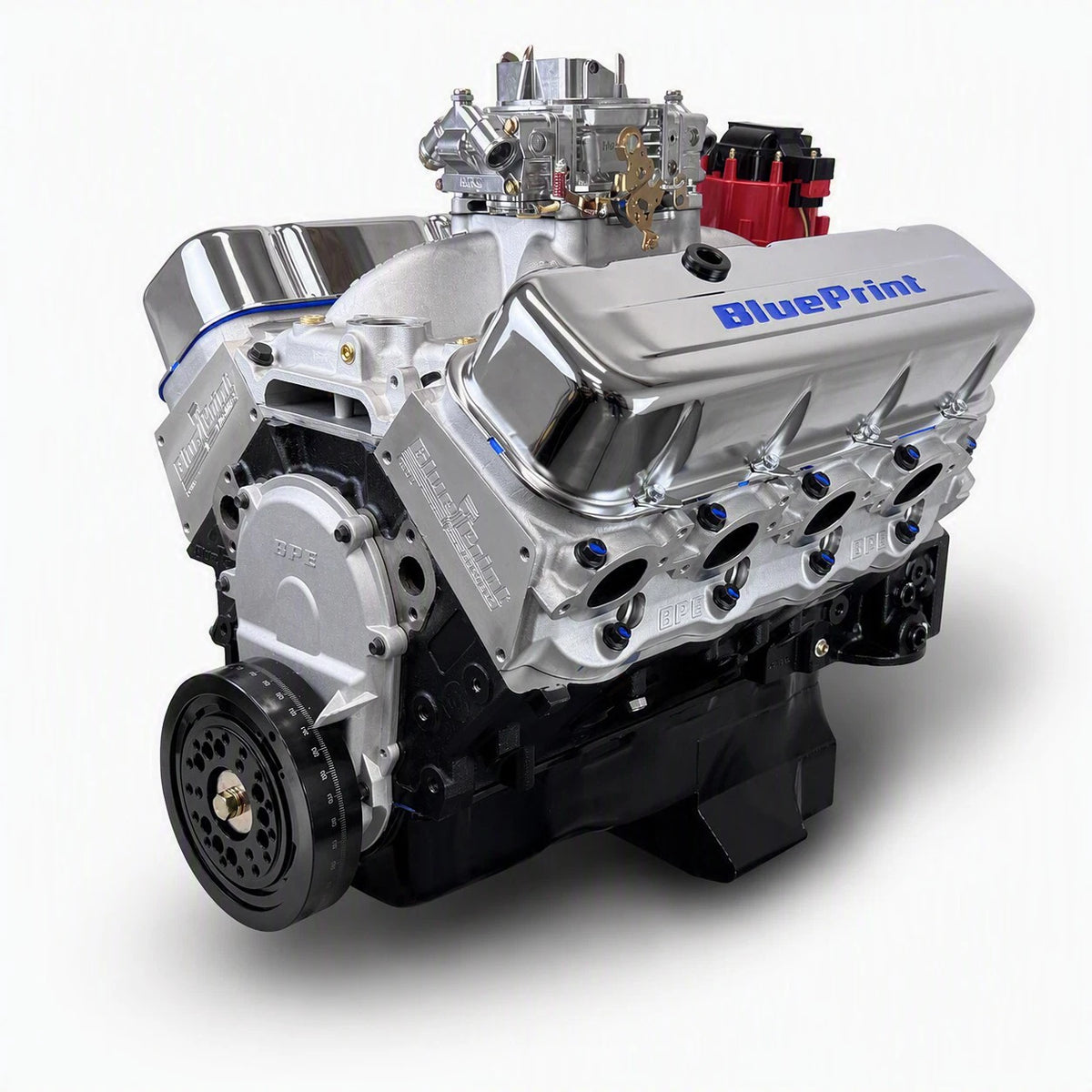

BluePrint Engines 496 High Torque Crate Engine

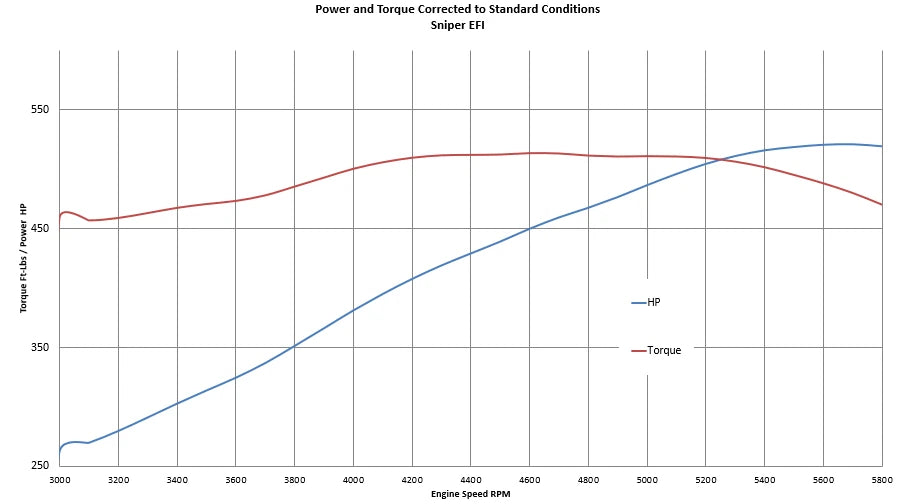

451hp dyno-proven horsepower, 523lb ft torque.
Big Block GM Style
Aluminum heads
Base Dressed Crate Engine with Holley 750 carburetor, valve covers, pan, HEI distributor, and balancer.
Give your truck the big-block torque it deserves. With 451 horsepower and 523 lb-ft of torque, the BluePrint Engines BP49613CTC is built to deliver hard-hitting low-end performance and strong throttle response right where truck owners want it. The high-torque hydraulic roller cam helps put that power to work down low, while the 8.7:1 compression ratio keeps things practical with the ability to run on 87-octane fuel. A forged rotating assembly and aluminum cylinder heads provide the strength and durability to back it all up, giving you a powerful, street-friendly big block that’s ready to work, cruise, and enjoy.
Description:
- Horsepower & Torque: 451 Horsepower / 523 ft. lbs. Torque
- Compression Ratio: 8.7:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Forged Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- Mech Fuel Pump Provision: Yes
- 1-Piece Rear Main Seal
- Standard Deck
- 4-Bolt Main
- 4.310" Bore
Rotating Assembly:
- BluePrint Forged Steel Crankshaft
- 4.250" Stroke
- H-Beam 6.385" Connecting Rods w/ 150,000 PSI Bolts
- Forged Pistons - Flat - 3cc
- Internally Balanced
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - PS8013
- 119cc Chamber
- 2.30" Intake / 1.88" Exhaust Valves
- 315cc Intake Runners
- Must Verify Header / Exhaust Clearance
Cam Specs:
- Hydraulic Roller
- .480 Intake / .483 Exhaust Lift
- 204 Intake / 209 Exhaust Duration
- @ .050-115.5 Degree Lobe Separation
Ignition Timing:
- 10-16° Initial and Total Timing 32-34°
Also Includes:
- Weiand Stealth Dual Plane Intake Manifold
- Holley 750cfm Carburetor
- Distributor - BPP350RBK
- Harmonic Balancer
- Timing Cover
- Oil Pump
- Dipstick
- Oil Pan
Notes:
- BPE recommends electric fans that produce 3000 cfm or more, for engines that are 400cid or less. Engines that are over 400cid BPE recommends 4000cfm or more.
- The initial advance should be set at 13-16 degree BTDC. The total advance should be NO MORE than 34 degrees BTDC and should be reached by about 4000 RPM. Failure to follow these guidelines can cause detonation damage and will void the warranty.
- Your engine requires pre-lubing before startup. Your engine has been dyno tested, but it does require additional preventative maintenance before initial startup. Fill oil filter and oil pan to recommended capacity.Remove spark plugs and proceed to crank engine over with starter until oil pressure is visible on manual gauge.Reinstall spark plugs and proceed with initial startup. It is critical that you read and follow the installation instructions in the installation guide.
- Not for use in pollution-controlled vehicles.
- BluePrint Engines recommends using a distributor with melonized iron or steel gear ONLY on this engine. Do not use bronze, or unmelonized cast iron distributor gears. Using the wrong distributor gear can cause severe damage to the engine, and void warranty. If you are uncertain of your gear compatibility, contact your distributor manufacturer.
