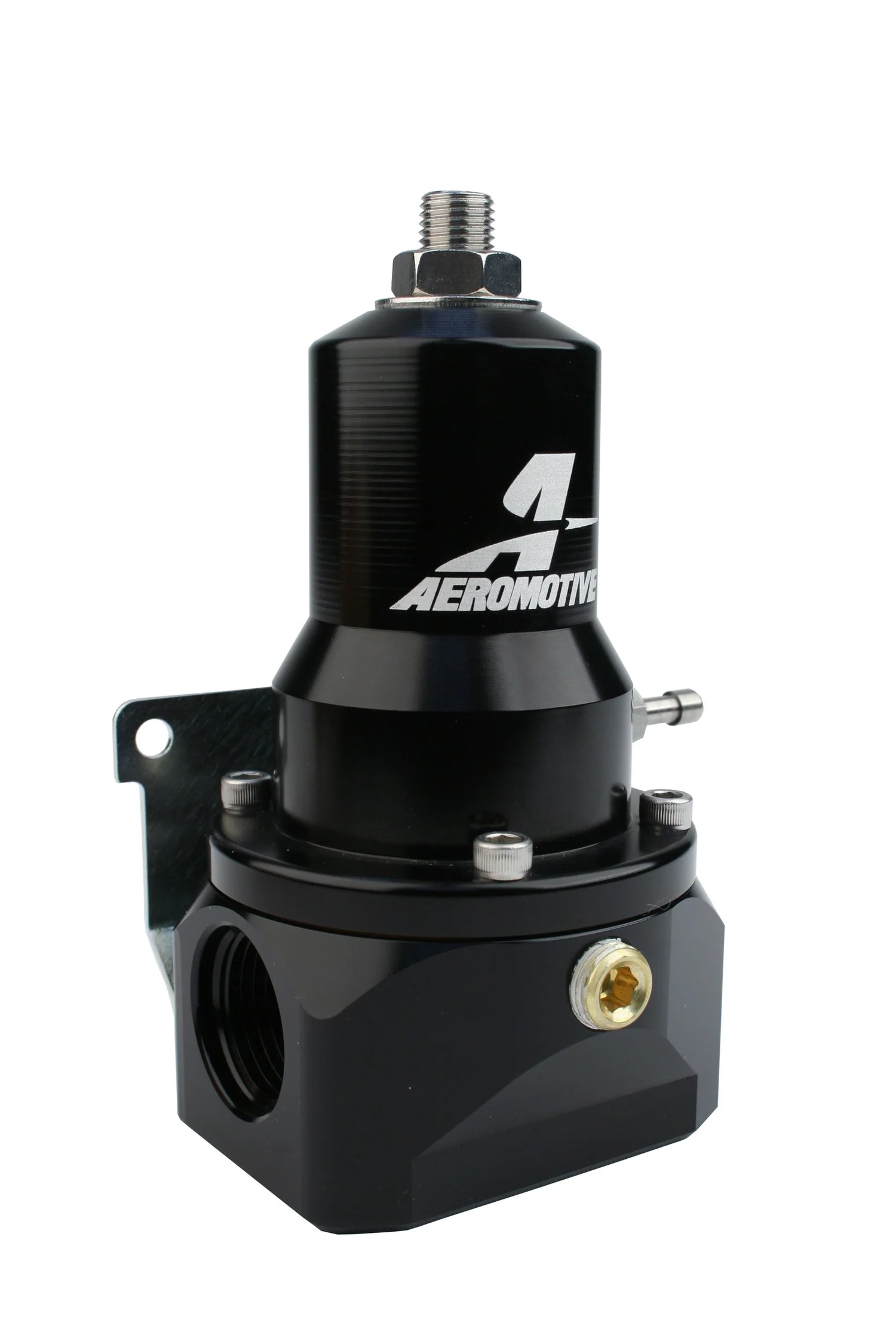

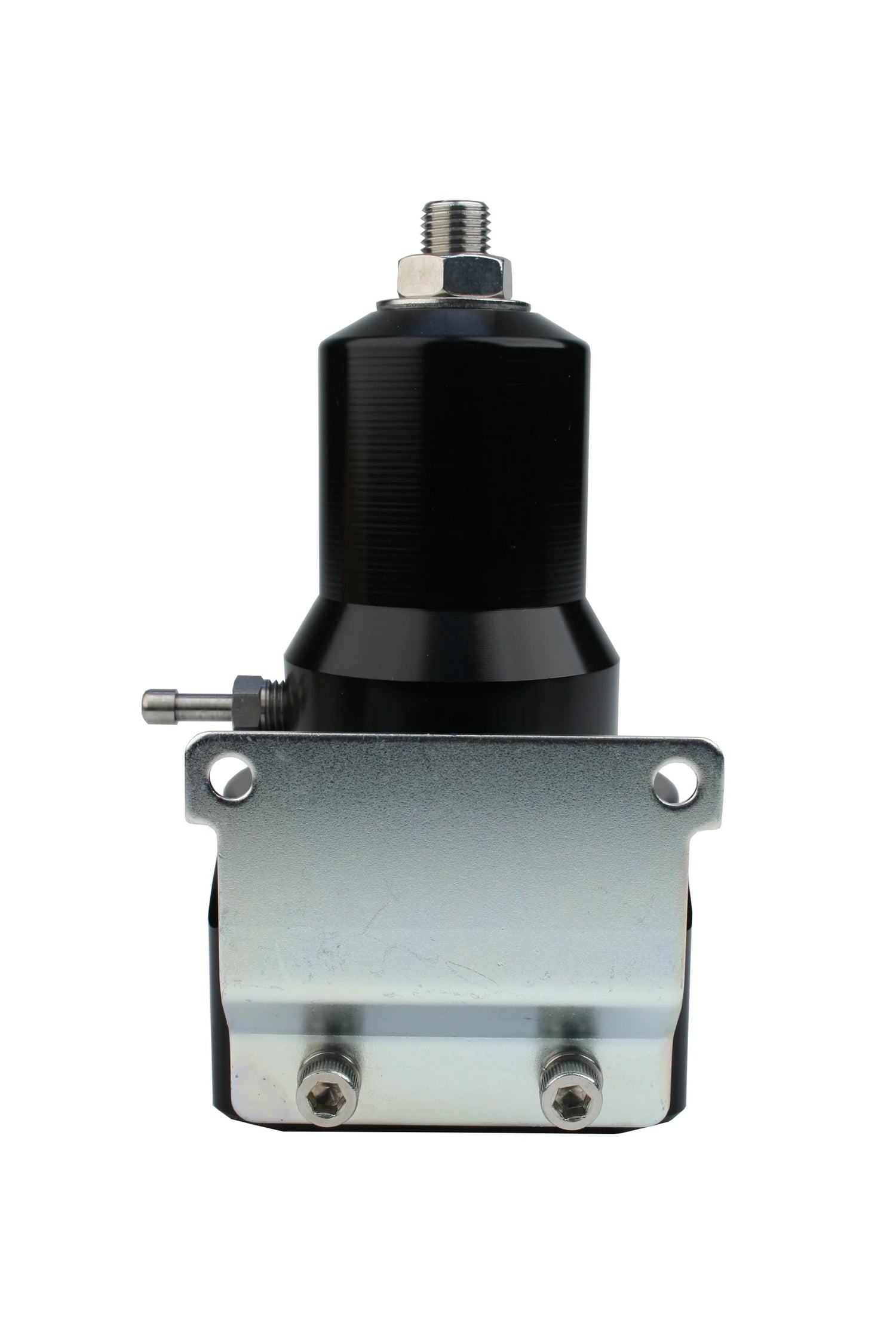

Aeromotive Extreme Flow Fuel Pressure Regulator 13132


This is one of the highest flowing regulators offered by Aeromotive.

Designed to suit the high demand of vehicles running with a hex or belt drive pump, this regulator will do whatever you want it to.

-Compact, 2-Port Body with dual ORB-10 inlet/outlet ports and one ORB-10 return port.
-0.500" High Flow Valve/Seat, able to handle 7-26 GPM
-Dual Springs expand operating pressure range while maintaining a low profile and reduced weight.
-Standard spring (installed) supports 30-75 PSI base fuel pressure.

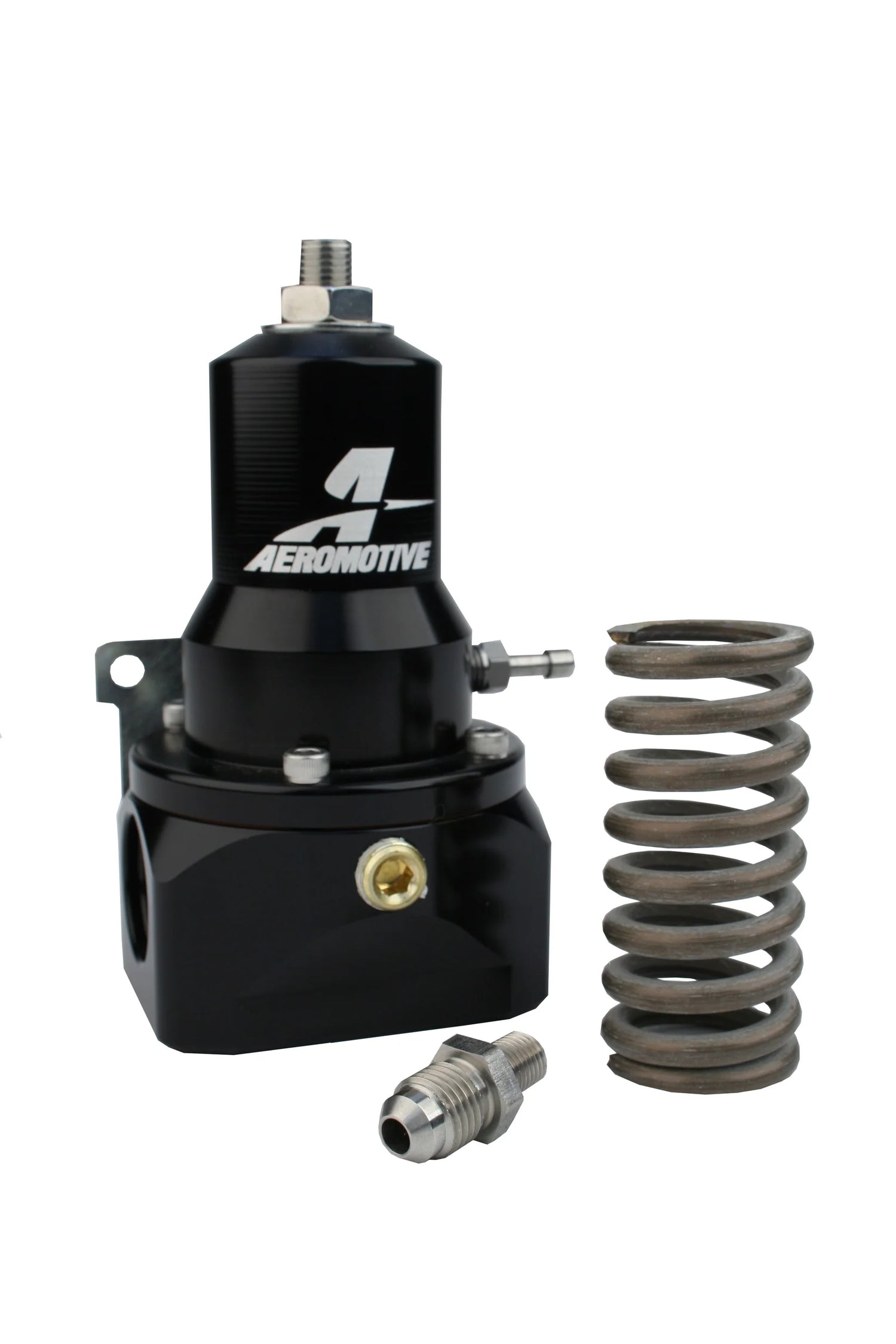

-High Pressure spring (included) supports 75-120 PSI base fuel pressure.
-Supports vacuum and boost reference on a 1:1 ratio with PSI
-Compatible with Pump Gas, Race Gas, E85, and Alcohol/Ethanol.

This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.
