Product Description

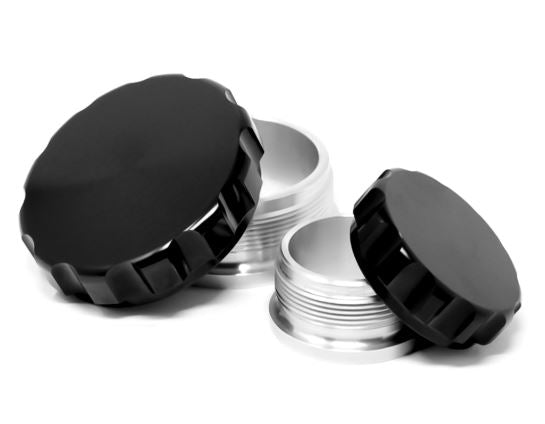

Making a custom intercooler tank or other reservoir? These USA manufactured weld bung and cap kits are perfect. The cap features an O ring seal to prevent leaks, and are notched for easy installation and removal.
The largest 3" one in this listing is perfect for ice tanks where you need a large diameter for filling.
We also have these available in 1.5", 2", and 2.5".
Included:
1 Weld On Aluminum Bung And Billet Aluminum Cap (black anodized).

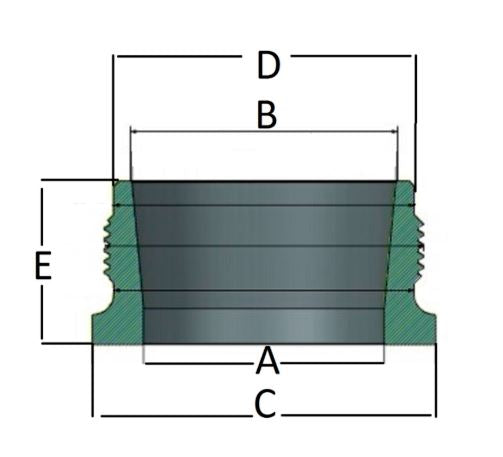

Dimensions:
- Anodized Color Specifications: Black and Silver
- Bung Material: T-6061 Aluminum
- Cap Material: T-6061 Aluminum
- Bung Base Inner Diameter =A: 2-3/4" or 72mm
- Bung Opening Inner Diameter =B: 3" or 75mm
- Bung Base Outer Diameter =C: 3-3/4" or 96mm
- Bung Opening Outer Diameter =D: 3-3/8" or 85mm
- Bung Hieght = E: 1-1/2" or 36mm
- Total Height With Cap: 1-3/4" or 44mm
- Cap Outer Diameter: 4-1/8" or 106mm
- Thread Pitch: 12 TPI
