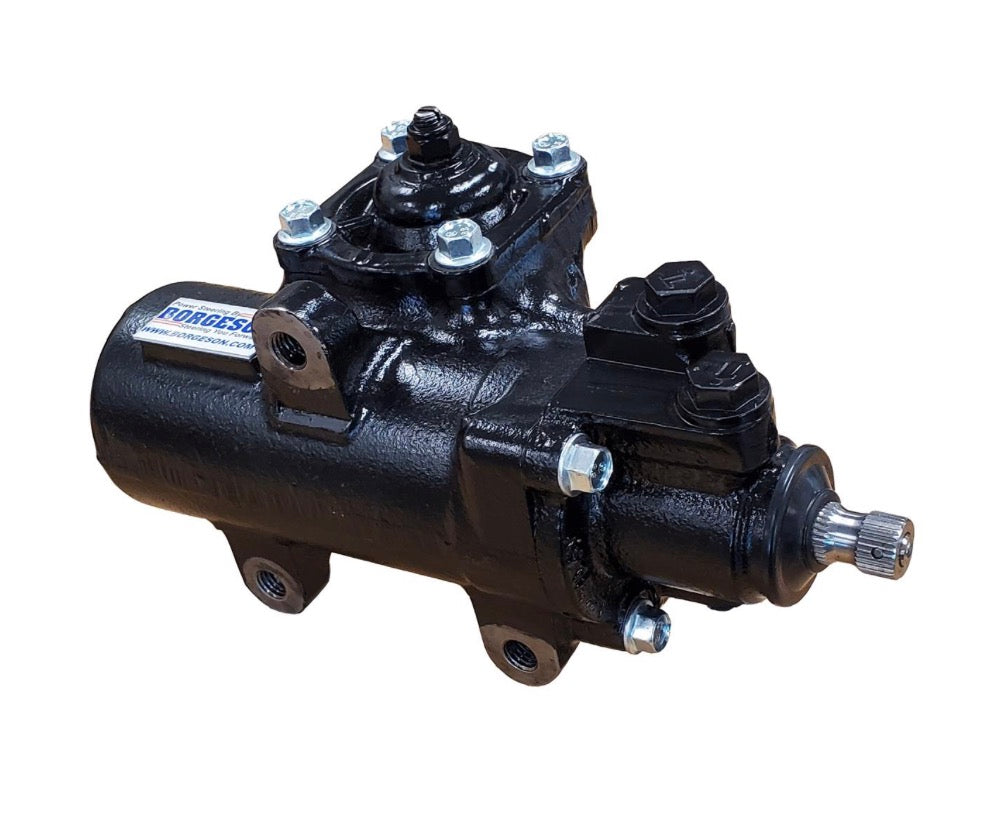

Expanding on the wildly successful Street & Performance Series of steering gears Borgeson Universal now offers the only quick ratio power steering box to replace the Delphi 800 series in the 1988-1998 Chevrolet and GMC OBS trucks. This all-new power steering box has a quick 12.7:1 ratio with firm modern steering feel. The Borgeson Street & Performance power steering box will bolt directly to the stock location and fit to the original power steering pitman arm, steering shaft and power steering hoses. All Borgeson power steering boxes are assembled and tested in the USA from globally sourced components and have a 3 year warranty. WARRANTY
800134 SPECIFICATIONS:
Input Shaft: 3/4"-30 Spline
Pitman Shaft: 1-1/4" GM with 32 Splines and 4 Master Splines
Pressure Port: M18 X 1.5 O-Ring
Return Port: M16 X 1.5 O-Ring
Maximum Pressure: 1450 PSI Maximum Operating Pressure, 1100-1250 Optimal
Flow Rate: 2.5-3.0 GPM Flow Rate Recommended
