Product Description

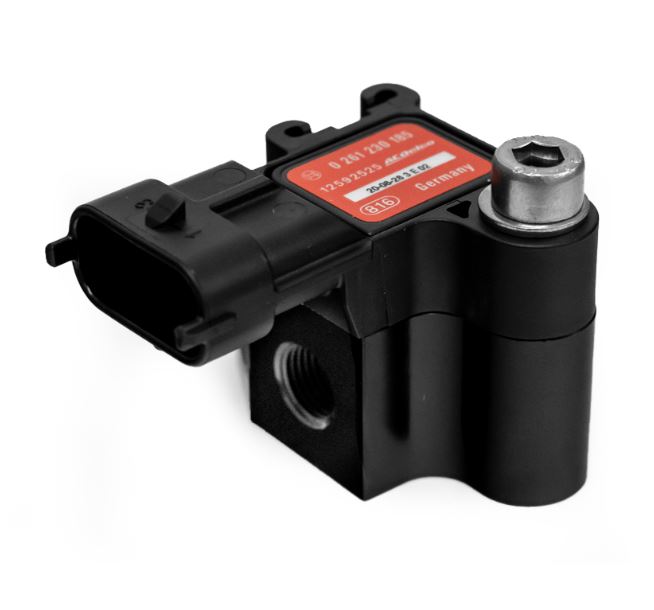

This billet remote mount GM MAP sensor fitting is perfect for any engine with aftermarket intake manifolds lacking OEM MAP sensor provisions.
The block is designed for all Gen 4 or Gen 5 three-wire Bosch MAP sensors commonly found on the LS3, LSA, ZL1, ZR1 or LT1/LT4 engines. Can be used with the common red or blue label GM 3 bar sensor, or the black label 1 bar MAP aka barometric pressure sensor.
Although this is specifically for a GM sensor, this sensor can be utilized in other applications such as using aftermarket ECU's, as long as the MAP is scaled properly in your tune.

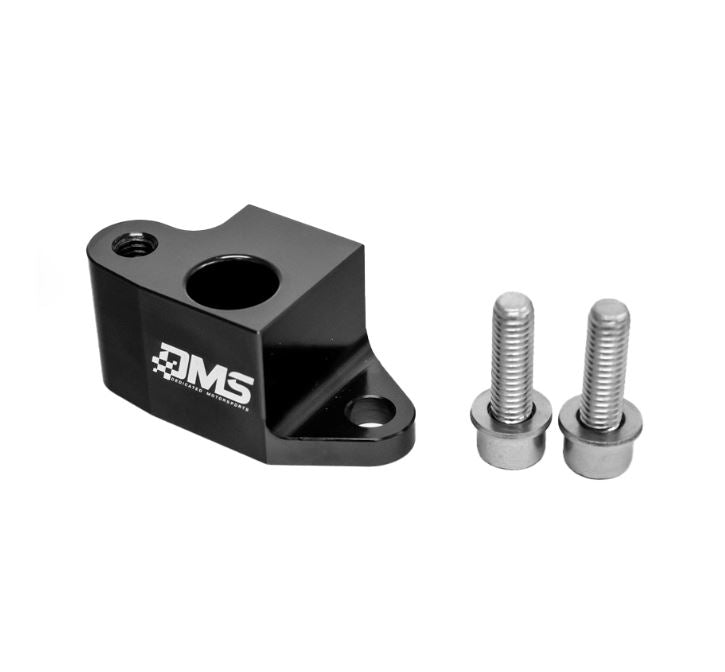

Stainless socket head bolts for mounting the sensor and the fitting are included. The sensor mounting hole is threaded all the way through so panel mounting from the backside is also possible along with the M6 through hole.
The Vacuum/Boost port is 1/8th Inch NPT for flexibility in choosing fittings to your intake manifold / blower.
Constructed from 6061 billet aluminum and anodized black.
Note: SENSOR IS NOT INCLUDED.
