LS Oil Pumps

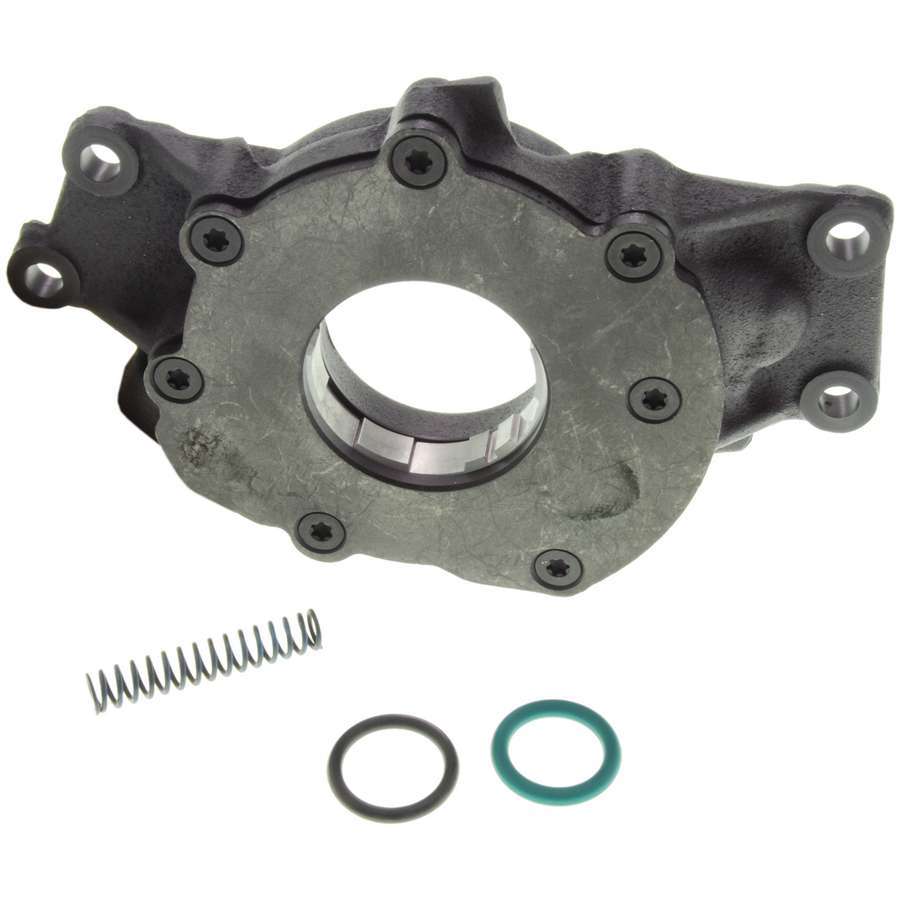

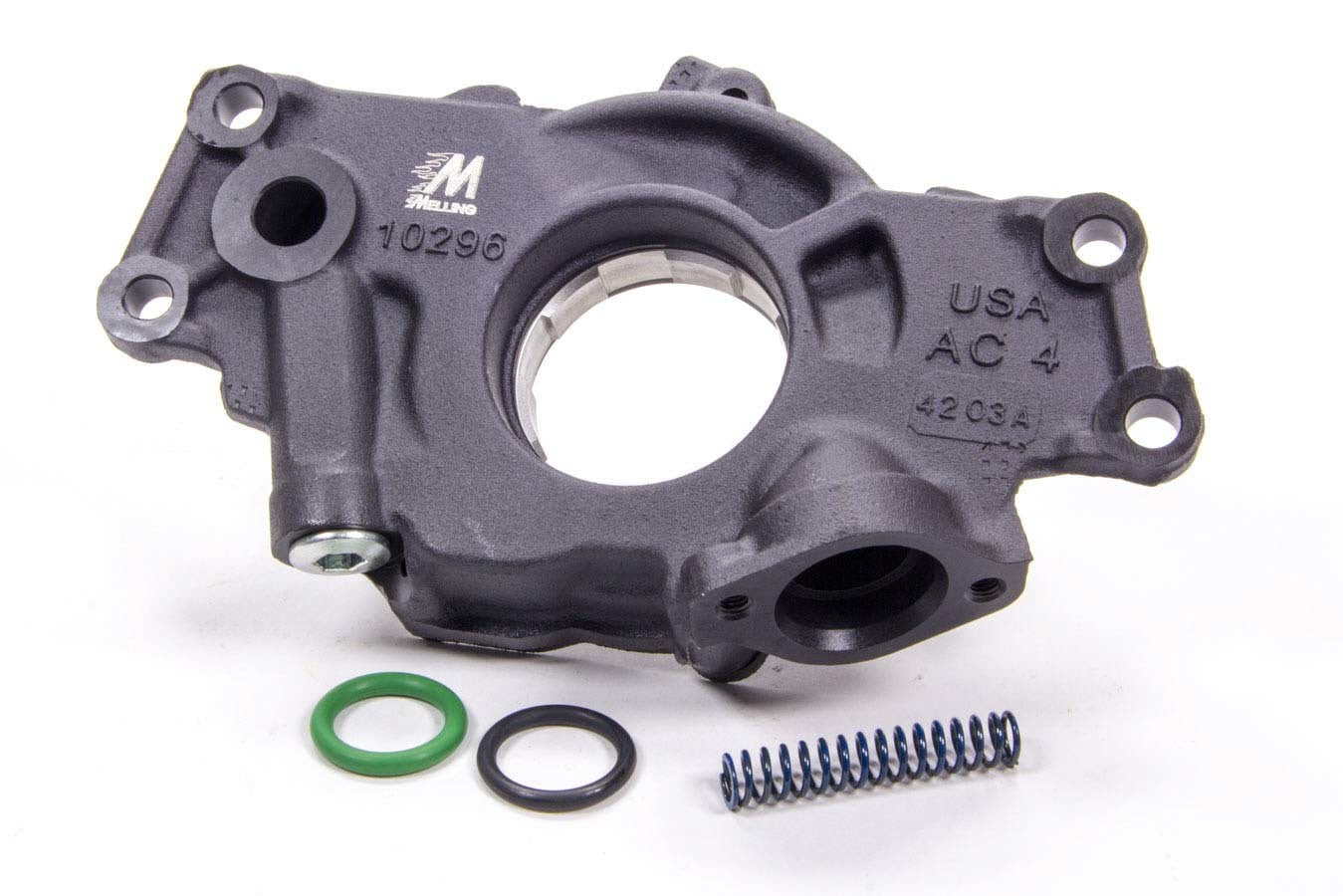

LS Oil Pump - High Volume High Pressure - Melling 10296

$18999

Product Description

Part number 10296

**High volume, high pressure. Due to the added flow, this is not recommended for applications where a smaller capacity oil pan is present. Works best on larger pans such as truck pans or engines with an accumulator. If you have DOD and/or VVT then you will want the 10355HV for the higher demands.

This pump delivers 18% more flow as compared to the standard volume 10295 oil pump. The design changes incorporated into 10295 have been carried over to this pump. The 10296 pump was engineered specifically for performance LS applications that demand increased oil flow. It can be used in any GM Gen III application with no modifications required to install the pump.

Features include:

  • Exclusive high volume (+18%) rotor design
  • Hard coat anodized aluminum housing
  • Phosphate coated cast iron cover
  • High pressure (+10 psi) spring installed
  • Includes optional standard pressure spring
  • Threaded pressure relief nut
  • Uses 7/8” stock bolt-on oil pickup tube assembly
  • Includes O-rings for oil pickup tube assembly
