Product Description

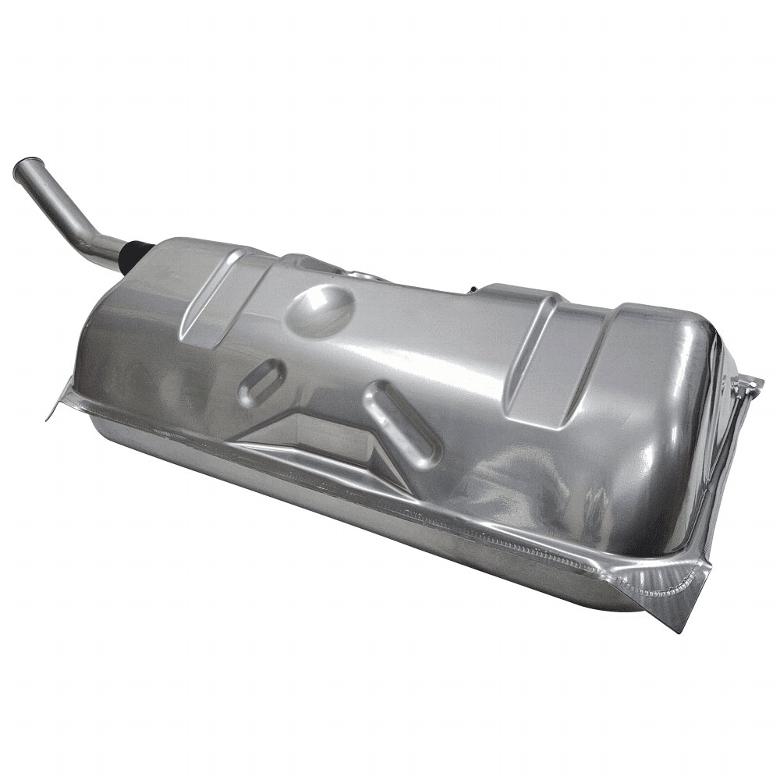

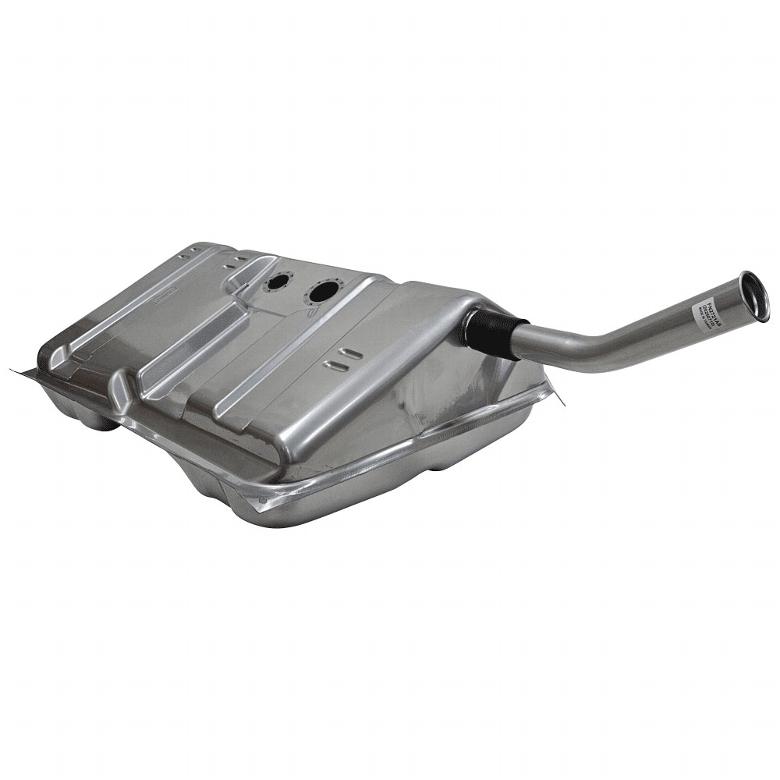

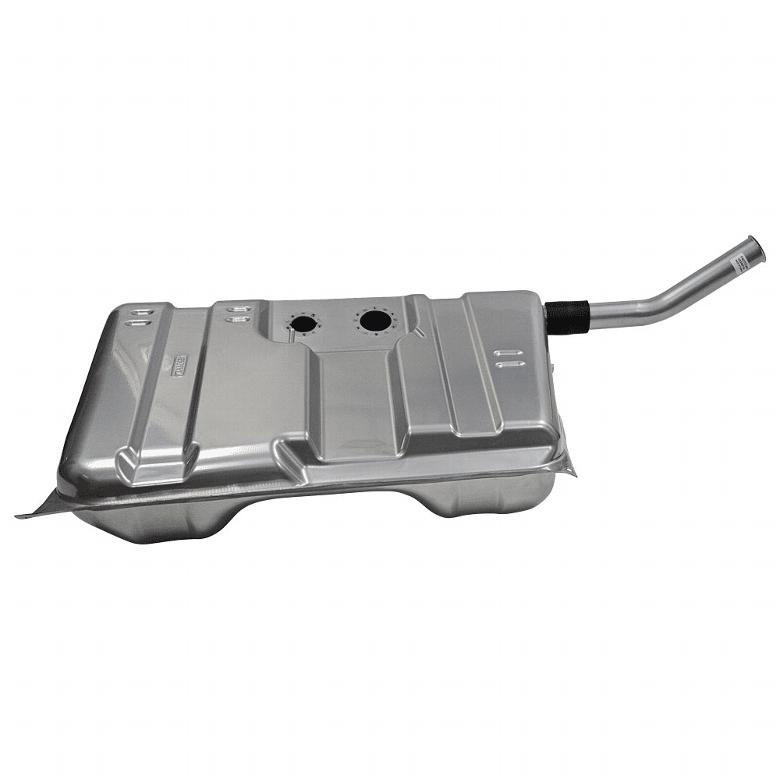

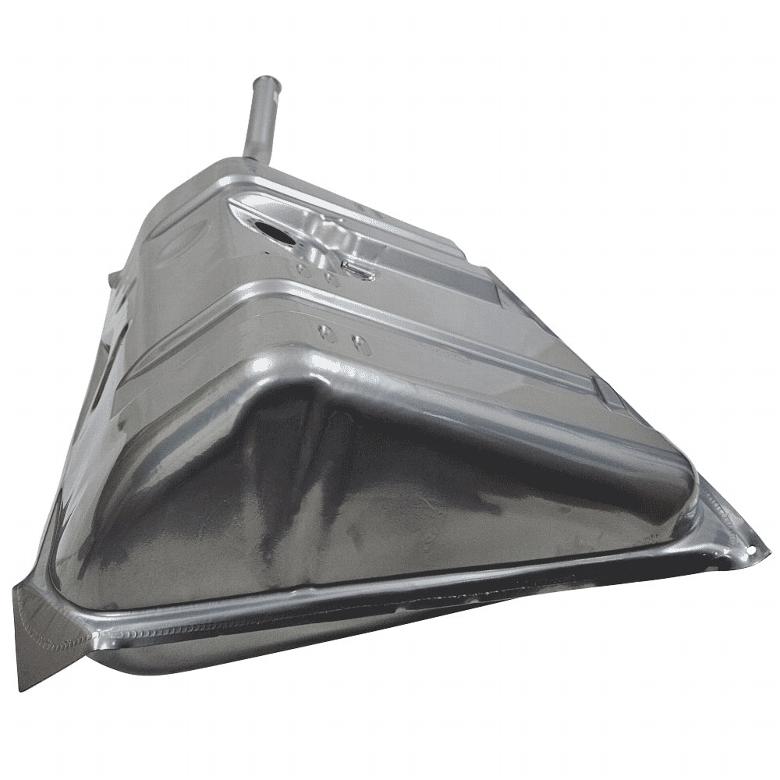

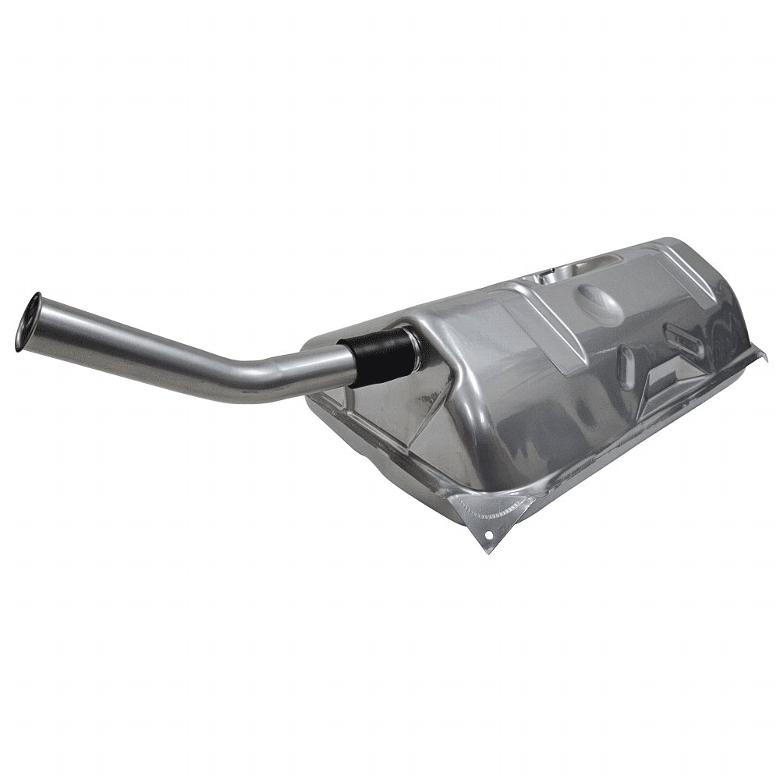

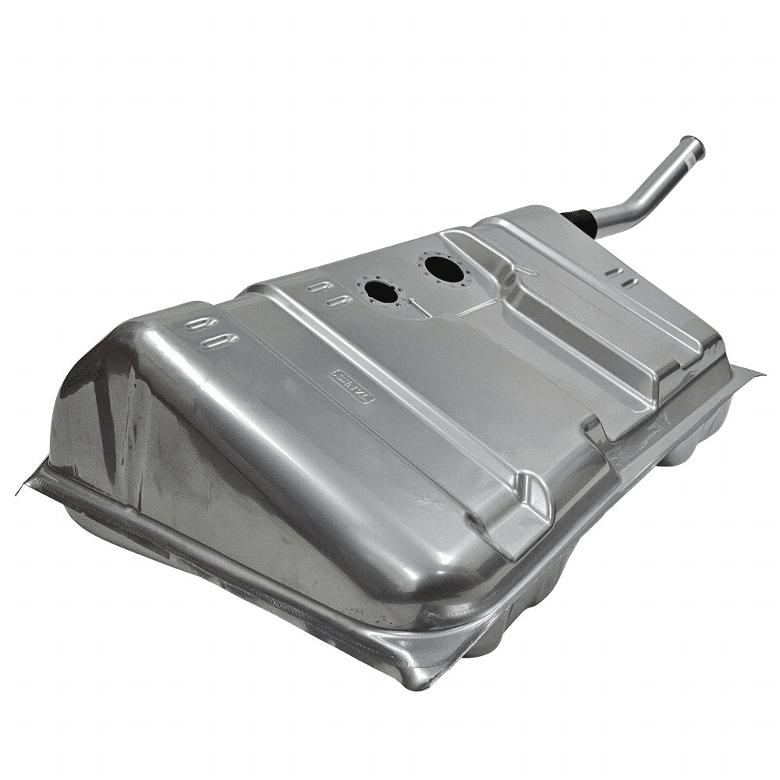

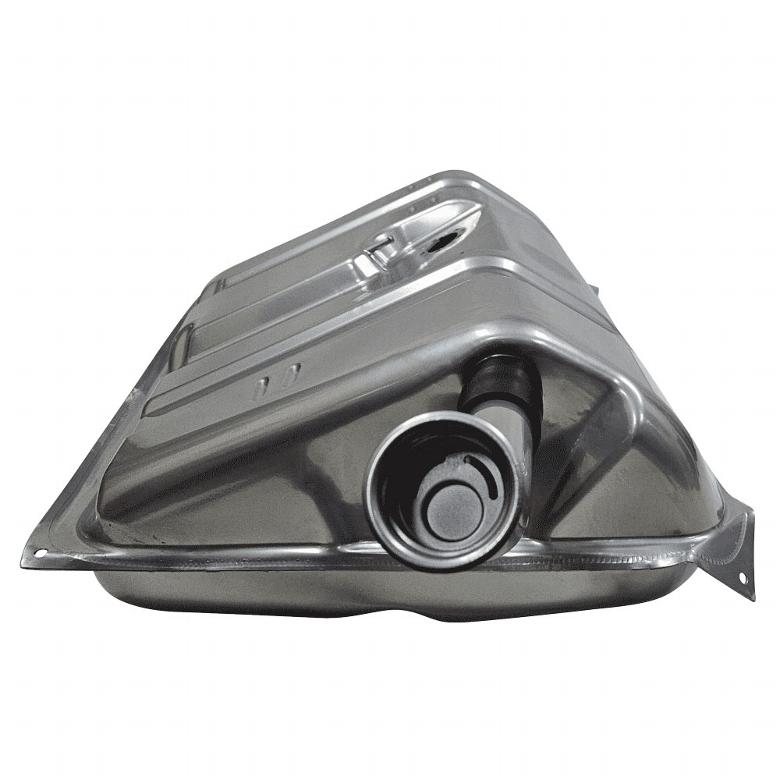

Tank’s Inc. now offers a high-performance EFI fuel tank designed specifically for 1982–1992 Chevrolet Camaro and Pontiac Firebird models. Engineered for modern fuel-injected applications, this OEM-style, powder-coated steel tank provides the internal baffling required to support late-model EFI engines while maintaining a factory-correct appearance. The 2-piece filler neck makes it simpler to remove from the car, lessening the chance of splitting the neck seam!
Tank part number: TM2721A-T
Description:
-
1982-92 Camaro & Firebird EFI Tank Kit
- Fuel Injection Ready! Perfect for LS / LT Swaps or EFI conversions.
- Includes 2 piece neck design that simply connects with supplied 2" ID rubber hose.
- Utilizes Walbro/Tanks Inc GPA pumps, available in sizes from 255 to 525 liters per hour. ***SEE NOTES BELOW FOR OUR RECOMMENDED HORSEPOWER RATINGS FOR EACH PUMP. CONTACT US IF YOU ARE UNSURE WHAT TO PICK***
- Choose your 5-bolt gauge sending unit- Standard is the swing-arm style. We also offer a tube-style sender. Tube style length is 10".
- The sending unit comes standard as 0-90 ohm which is stock range for 82-92.
- EFI style internal baffling with extra large 4.8 liter dual tube baffled fuel tray to prevent fuel pump starvation.
- Perfect for your Pro-Touring, Autocross or Road Racing Ride
- Fuel pump and sender are recessed in the tank for easy installation with no modification needed to your car.
- Fuel Pump is moved further to the rear for better fuel delivery during acceleration
- Two-piece neck simplifies installation
- Looks like an OE tank when installed.
- Coated galvanized steel then Powder Coated Silver.
- 15 Gallon Capacity
- Size is: 34" x 23-3/8" x 11-3/8"
- NOTE: Pump hat includes 1) 1/4NPT female for pressure, 1) 1/4NPT female for return, and a hose barb for venting. You will need to customize your lines or make new ones in order to install.
190lph: 425hp naturally aspirated EFI 93 octane.
255lph: 625hp naturally aspirated EFI 93 octane.
340lph: 800hp n/a EFI, 650hp boosted, 93 octane.
400lph: 900hp n/a EFI, 700hp boosted, 93 octane.
450lph: 1000hp n/a EFI, 750hp boosted, 93 octane.
525lph: 1000+hp n/a EFI, 850hp boosted, 93 octane.
***These numbers are subject to change depending on your voltage to the pump, base fuel pressure, and fuel type used. We are not liable for insufficient pump capacity per your setup.
If you have over 800hp boosted, it's recommended to go with a twin fuel pump system which this tank will not support without modification. We do have solutions with different tanks if that is the case, please contact us for information.
Fits 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 Camaro Firebird and Trans Am models.
