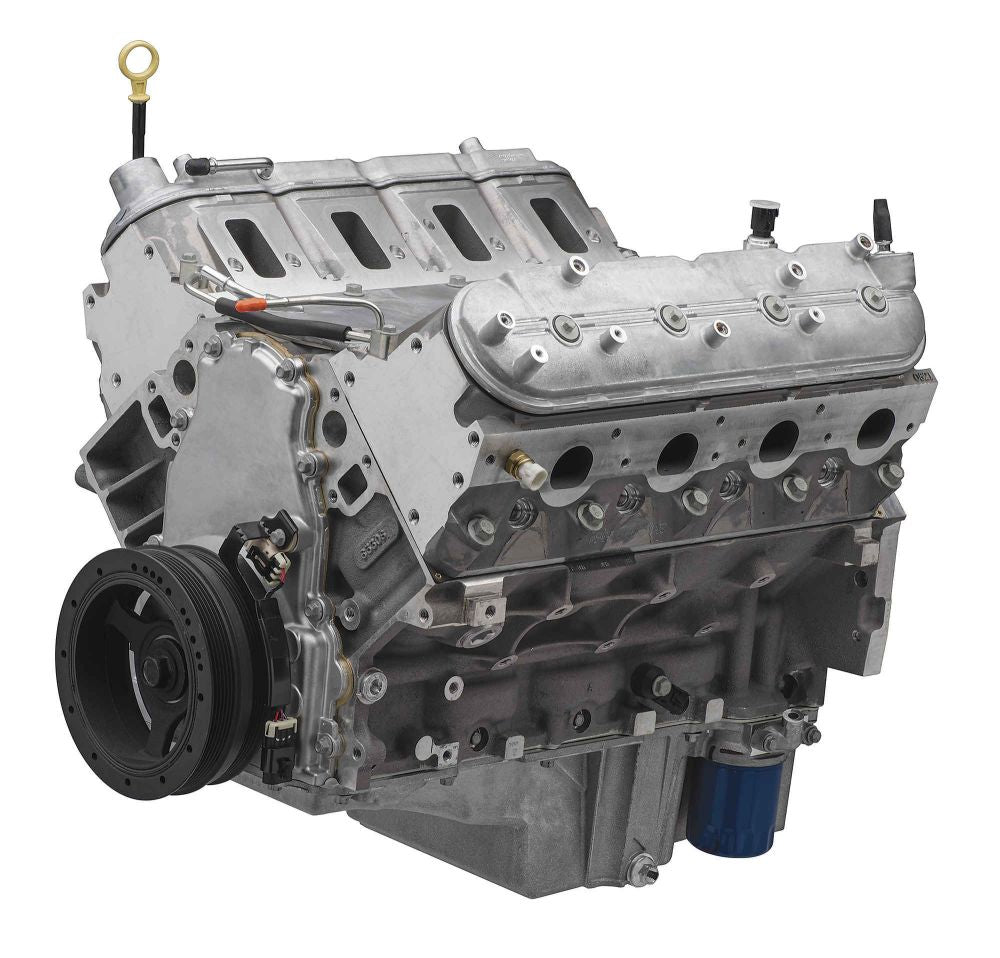

LS3 495hp LONG BLOCK Crate Engine 6.2L 480 - 19435108

$6,550.80

IN STOCK AS OF 9/28/23!!!!!



****MAKE SURE TO CHOOSE THE LIFT GATE OPTION IF YOU NEED ONE!



THE HOT CAM ADDS HEAT TO THE LS3
GM engineers took a production LS3 6.2L (376 cubic inches) and swapped the stock camshaft for the racing-inspired LS Hot Cam (P/N 88958753), which delivered a stunning 495 horsepower and 473 lb.-ft. of torque. That’s nearly 14 percent more power and torque from a simple camshaft change!

GM wasted no time in adding that terrific combination – dubbed LS376/480 – to our crate engine portfolio. The key to the power boost is the Hot Cam’s 0.525-inch lift on both the intake and exhaust sides, along with 219-degree/228-degree duration specs. That’s less lift on the intake side than the stock LS3 cam, but considerably more duration, allowing the valves to stay open longer to draw in more air from the rectangular-port L92-style heads.

TECH SPECS
Part Number: 19434646 (Old PN: 19432424)
Engine Type: LS-Series Gen IV Small-Block V-8
Displacement (cu in): 376 cu in (6.2L)
Bore x Stroke (in): 4.065 x 3.622 (103.25 x 92mm)
Block (P/N 12623967): Cast-aluminum with 6-bolt, cross-bolted main caps
Crankshaft (P/N 12597569): Nodular iron
Connecting Rods (P/N 12649190): Powdered metal
Pistons (P/N 19207287): Hypereutectic aluminum
Camshaft Type (P/N 12623063): Hydraulic roller
Valve Lift (in): .525 intake / .525 exhaust
Camshaft Duration (@.050 in): 219° intake / 228° exhaust
Cylinder Heads (P/N 12629063): Aluminum L92-style port; as cast with 68cc chambers
Valve Size (in): 2.165 intake / 1.590 exhaust
Compression Ratio: 10.7:1
Rocker Arms (P/N 12669995 int): Investment-cast, roller trunnion
Rocker Arms (P/N 12669993 exh): Investment-cast, roller trunnion
Rocker Arm Ratio: 1.7:1
Recommended Fuel: Premium pump
Maximum Recommended rpm: 6,600
Reluctor Wheel: 58x
Balanced: Internal

INSTALLATION NOTES
• Assembly does not include any electronics, intake manifold, fuel system , ignition.
• Includes Chevy F-Body wet sump oil pan (may need to be changed depending on application).
***DOES NOT INCLUDE DIPSTICK
***DOES NOT INCLUDE STEAM TUBE CROSSOVER
• Intended for pre-1976 street vehicles or any off-road vehicle
• Not intended for marine applications

To make your long block into more of a crate engine, visit our exclusive product here: LS3 Long Block Completion Kit for 430 495 525 Crate Engines – Pro Touring Store
