SBC Crate Engines

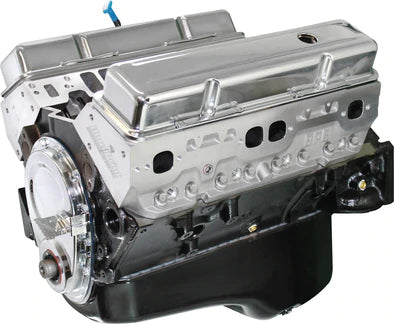

BluePrint 383 SBC 436hp Long Block Crate Engine

$5,84900

Product Description

This long block crate engine from BluePrint Engines is ready for whatever you want to put on top of it.
Dual quad intake? Single plane with EFI? Dual plane w/Holley Sniper?
The choice is yours!

*No distributor
*No intake
*No water pump
*No balancer

Part #: BP38318CT1



DESCRIPTION

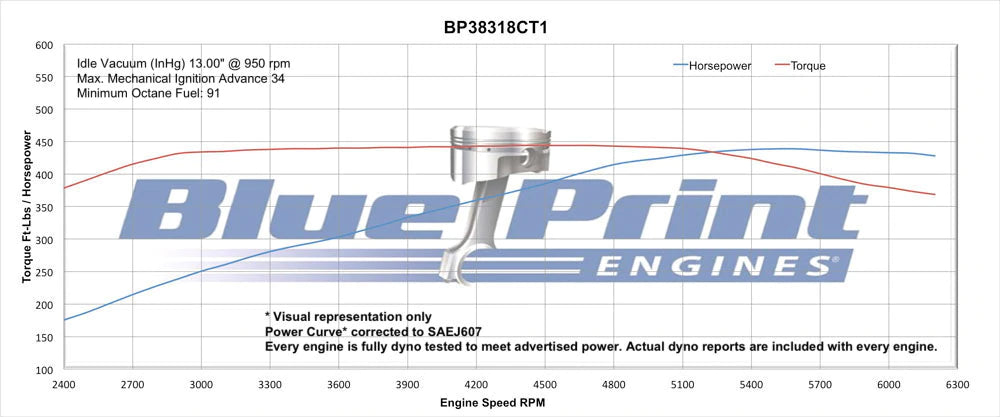

  • DYNO TESTED
    HP and torque : 436 HP / 443 FT LBS
    Compression Ratio: 10.0:1
    Aluminum Heads
    Hydraulic Roller Cam
    Cast Steel Crank
    Hypereutectic Pistons

BLOCK:

  • NEW BluePrint Cast Iron Block
    Manufactured and Machined in the USA!
    4-Bolt Main
    4.000" Bore
    1-Piece Rear Main Seal
    Mech fuel pump provision: Yes
    Passenger Side Dipstick
    Drilled & tapped for clutch linkage

ROTATING ASSEMBLY:

  • New BluePrint Cast steel crankshaft
    3.750" Stroke
    OEM type 5.700" connecting rods w/ 150,000 psi bolts
    Hypereutectic pistons
    External Front/ External Rear

CYLINDER HEADS:

  • BluePrint Aluminum Cylinder Heads - H8002K
    64cc chamber
    2.02" intake/1.60" exhaust valves
    195cc intake/75cc exhaust runners

CAM SPECS:

  • Cam Type: Roller
    .544 Intake .555 Exhaust
    230 Intake / 236 Exhaust duration @ .050
    110 ° lobe separation angle

IGNITION TIMING:

  • Initial timing - 10-16 ° and Total timing 32-34°

ALSO INCLUDES:

    • Oil Pan
    • Dipstick
    • Valve Covers
    • Timing Cover

    WARRANTY:

    • 30 month / 50,000 mile



    NOTES:

    • Not for EGR.
      Recommended Oil: BPP10W30 BluePrint Crate Engine Oil
      Recommended Harmonic Balancer: BPP400L
      Recommended Stall Converter: 2200 to 2400 RPM.
      Recommended Fuel: 91 Octane.
    • This engine features a true 4 inch bore, which mathematically yields 377 CID with a 3.75 inch stroke
