SBC Crate Engines

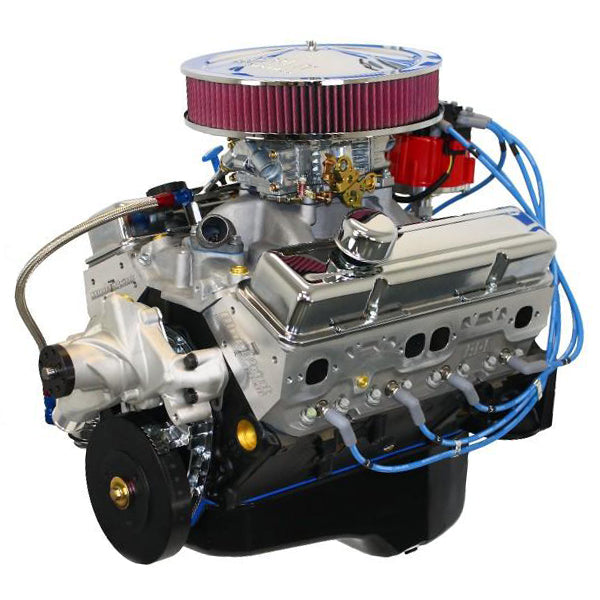

BluePrint 383 SBC 436hp Crate Engine w/Carburetor

$7,04900

Product Description

Part number: BP38318CTC1D

DESCRIPTION



  • DYNO TESTED
    HP and torque : 436 HP / 443 FT LBS
    Compression Ratio: 10.0:1
    Aluminum Heads
    Hydraulic Roller Cam
    Cast Steel Crank
    Hypereutectic Pistons

BLOCK:

  • NEW BluePrint Cast Iron Block
    Manufactured and Machined in the USA!
    4-Bolt Main
    4.000" Bore
    1-Piece Rear Main Seal
    Mech fuel pump provision: Yes
    Passenger Side Dipstick
    Drilled & tapped for clutch linkage

ROTATING ASSEMBLY:

  • New BluePrint Cast steel crankshaft
    3.750" Stroke
    OEM type 5.700" connecting rods w/ 150,000 psi bolts
    Hypereutectic pistons
    External Front/ External Rear

CYLINDER HEADS:

  • BluePrint Aluminum Cylinder Heads - H8002K
    64cc chamber
    2.02" intake/1.60" exhaust valves
    195cc intake/75cc exhaust runners

CAM SPECS:

  • Cam Type: Roller
    .544 Intake .555 Exhaust
    230 Intake / 236 Exhaust duration @ .050
    110 ° lobe separation angle

IGNITION TIMING:

  • 34 Degrees Total at 3500 RPM

ALSO INCLUDES:

  • Valve covers
    Harmonic balancer
    Spark plugs
    Spark plug wires
    Standard Rotation Long Style Water Pump
    Fuel Pump
    Oil pan
    Timing cover
    Aluminum Intake Manifold *Will not clear a stock Corvette hood. Please call for special build options
    HEI distributor
    750cfm Carburetor

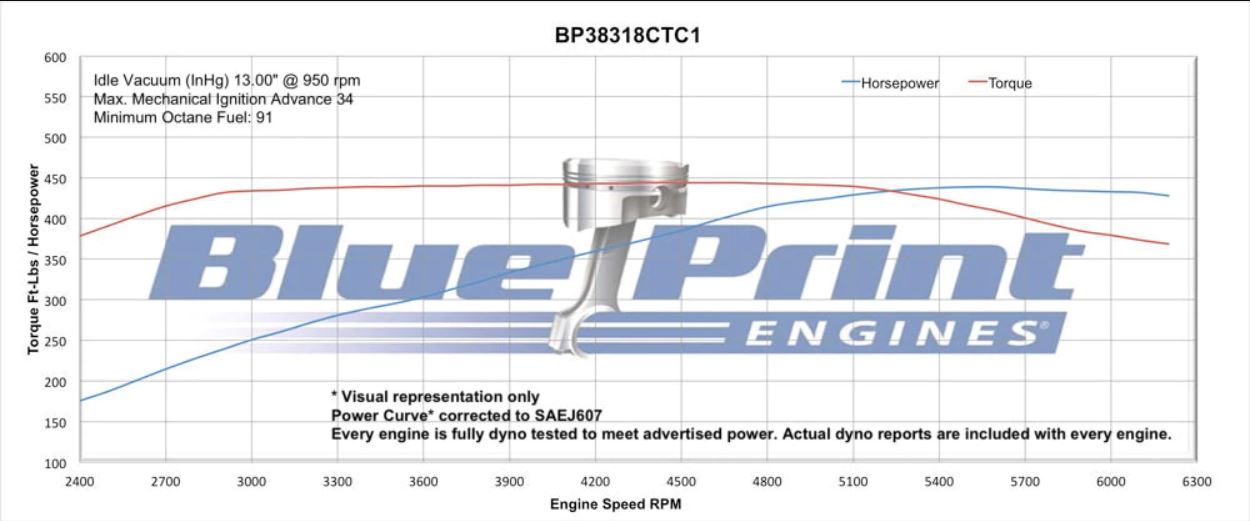

    Dyno tested and shipped with results

WARRANTY:

  • 30 month / 50,000 milecrate

NOTES:

  • Not for use in pollution-controlled vehicles.

    This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke,
