Part Number: BP454CTFK

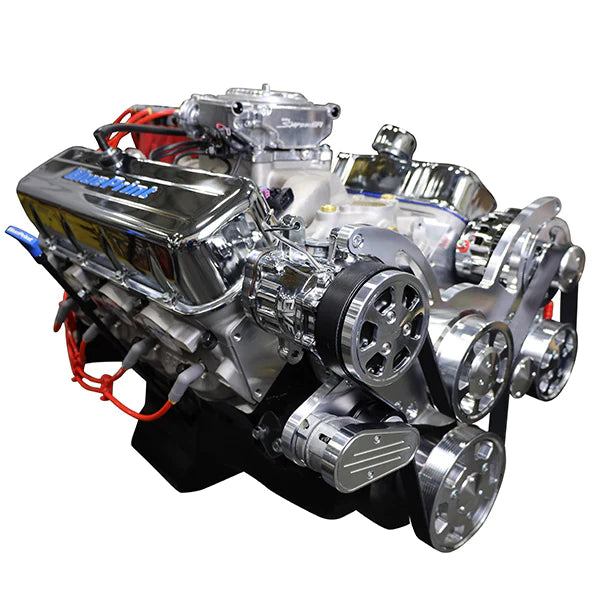

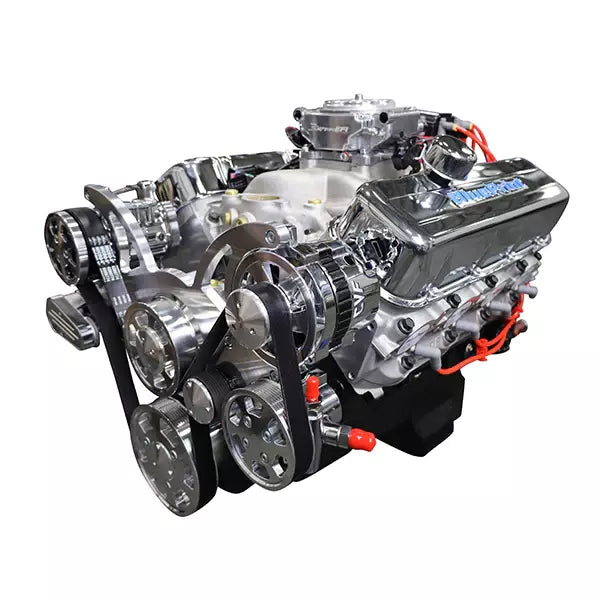

BluePrint Engines 454 ci Cruiser Crate Engine
460hp dyno-proven horsepower, 479lb ft torque.
Big Block GM Style
Aluminum heads
Dressed Crate Engine with polished accessory drive (AC/PS/Alt, etc), valve covers, pan, billet distributor, and Holley Sniper EFI system
-
- HP & Torque: 460 HP / 479 FT LBS
Compression Ratio: 9.85 to 1
Aluminum Heads
Hydraulic Roller Cam
Forged Crank
Hypereutectic Pistons
BLOCK:
- NEW BluePrint Cast Iron Block, 454 BBC
Manufactured and Machined in the USA!
4-Bolt Main
4.000" Stroke, 4.250" Bore
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Standard Deck
ROTATING ASSEMBLY:
- New BluePrint Forged Crankshaft
4.000" Stroke 4.250" Bore
OEM type 6.135" connecting rods w/ 150,000 psi bolts
Hypereutectic pistons
External
CYLINDER HEADS:
- BluePrint Aluminum Cylinder Heads - PS8013
119cc chamber
2.30" intake/1.88" exhaust valves
316cc intake/124cc exhaust runners - Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting.
- Must verify header/exhaust clearance
CAM SPECS:
- Cam Type: Roller
.501 Intake .510 Exhaust
216 Intake / 228 Exhaust duration
@ .050 - 112 degree lobe separation
IGNITION TIMING:
- Initial timing - 10-16° and Total timing 32-34°
ALSO INCLUDES:
- Intake Manifold single plane, satin aluminum
- Sniper EFI System
- Pro Billet Distributor
- Harmonic balancer
- Valve covers, oil pan and timing cover

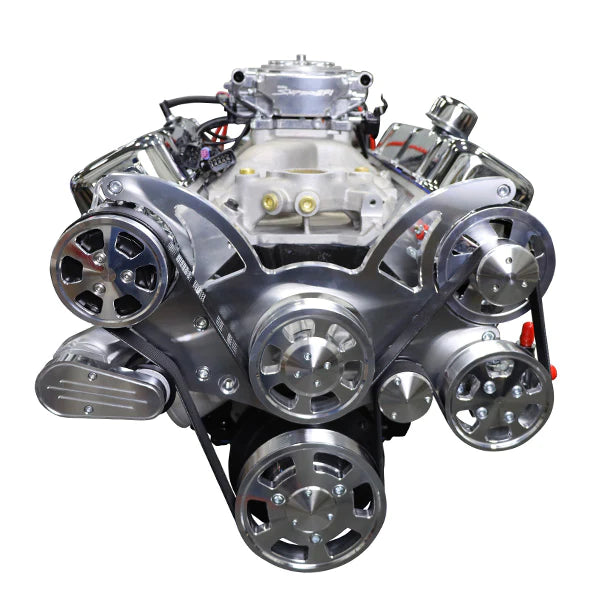

- Installed polished complete front accessory drive system with A/C, P/S, WP, all belts and pulleys.

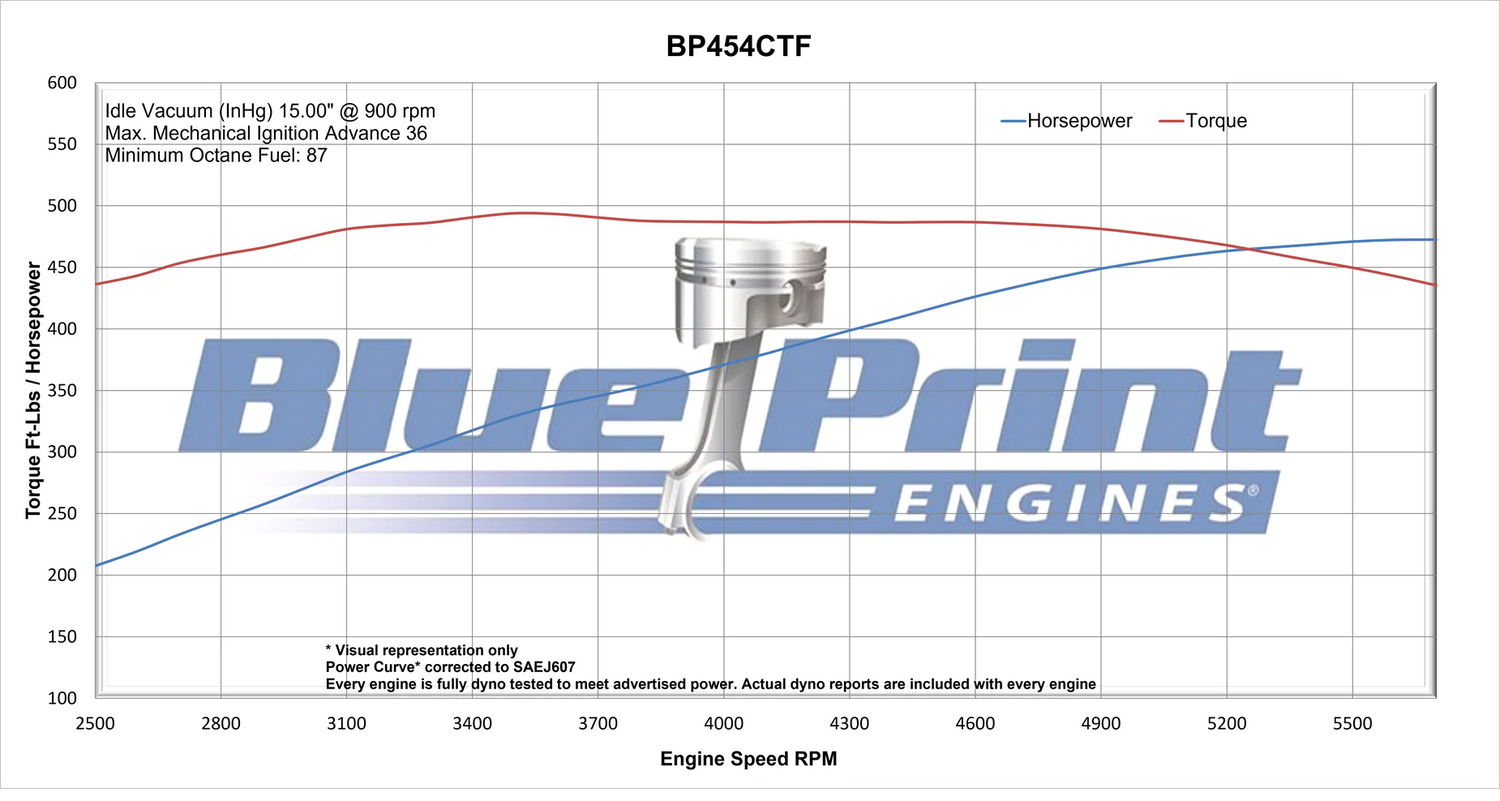

- Dyno test results shipped with engine
WARRANTY:
- 30 month / 50,000 mile
NOTES:
-
This engine is an excellent cruiser and daily driver engine. This engine makes up to 15 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel.
-
Features External 42.5 oz. imbalance. Recommend GM flywheel 14096987, or TCI flexplate 399973.
- HP & Torque: 460 HP / 479 FT LBS
