Product Description
This system features the 4-piston, S4 caliper mounted to a 13", 2 piece slot, drill, zinc-plated rotor. The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1-C pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Baer’s unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Stainless braided hoses and hardware are also included. The 13" SS4+ fits most 17” or larger wheels.
Features:
- 2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
***CHOOSE YOUR BRAKE CALIPER COLOR: CONTACT US TO ORDER ADDITIONAL COLOR OPTIONS***
Specs
| Axle |
Rear |
| Axle Flange |
Ford 9" Torino/Late Big Bearing |
| Brand |
Baer Brakes |
| Caliper |
S4 |
| Caliper Color |
Choose |
| Category |
Brake |
| Disc Brake Caliper (Rear) Piston Quantity |
4 |
| Disc Brake Caliper (Rear) Type |
Fixed |
| Disc Brake Pad FMSI Number |
DR1-C |
| Disc Brake Rotor (Rear) Construction |
Vented |
| Disc Brake Rotor (Rear) Outside Diameter |
13.000 IN |
| Emission Code |
6 |
| Export Description |
Brake Components |
| Grade Type |
Performance |
| Hose Material |
Stainless Steel |
| Includes Park Brake |
Yes |
| Includes Park Brake Cables |
No |
| Lug Count |
5 Lug |
| Min Wheel Dia (verify using template) |
17 IN |
| part type |
Disc Brake Upgrade Kit |
| Product Line |
13 Inch SS4+ |
| Product Type |
13 Inch SS4+ Rear Brake Kit |
| Prop 65 (C, R or CR) |
CR |
| Prop 65 - Long Label |
WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov |
| Prop 65 - Short Label |
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No |
Yes |
| Rotor Thickness |
.810 IN |
| Rotor Type |
2-Piece |
| Sub Category |
Service Kits |
| Surface Type |
Slotted, Drilled & Zinc Plated |
| System Notes |
Designed to be used with Ford 9" Torino(aka late big/new style big Ford) bearing housing ends |
| Template |
S135H |
| Title |
SS4+ Brake System Rear |
| Wheel Lug/Bolt Pattern |
Choose |
| UPC |
|
| Part Number |
|

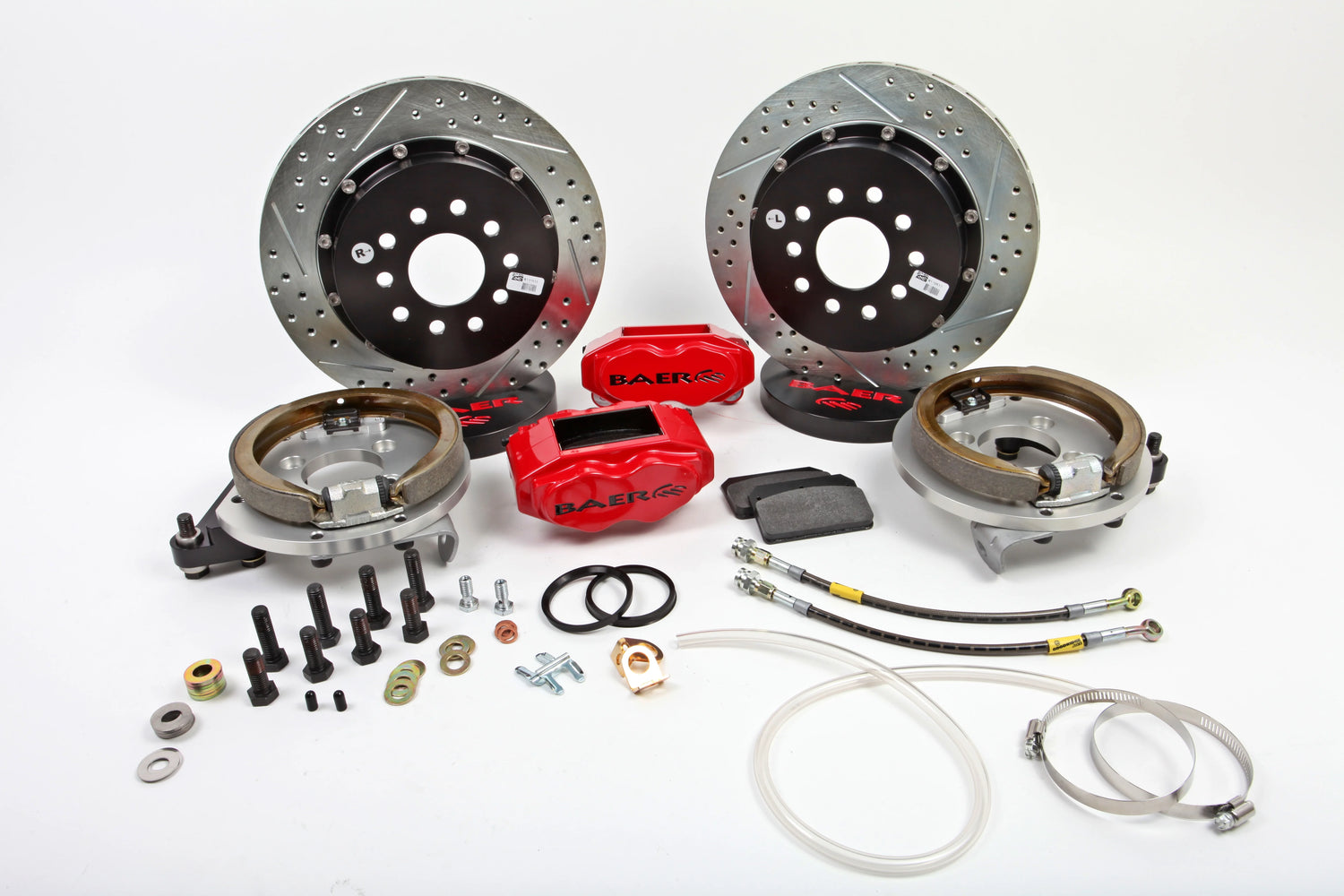

System Includes:
Calipers, Brake pads, Rotor & Hat assemblies, Backing plates,, Brackets, Stainless braided brake hoses & mounting hardware.
*Does NOT include park brake cables
Applications:
- Ford "Torino" aka New Style Big Bearing axle ends
BAER BRAKES TEMPLATE:
https://documents.baer.com/6e1260b8fa4df93b74dcb98a4cd2c1dd8162a25b.pdf
INSTRUCTIONS:
https://documents.baer.com/2bd014aa7c926fb0cc9dedd2d4d4ea833dd7526c.pdf
