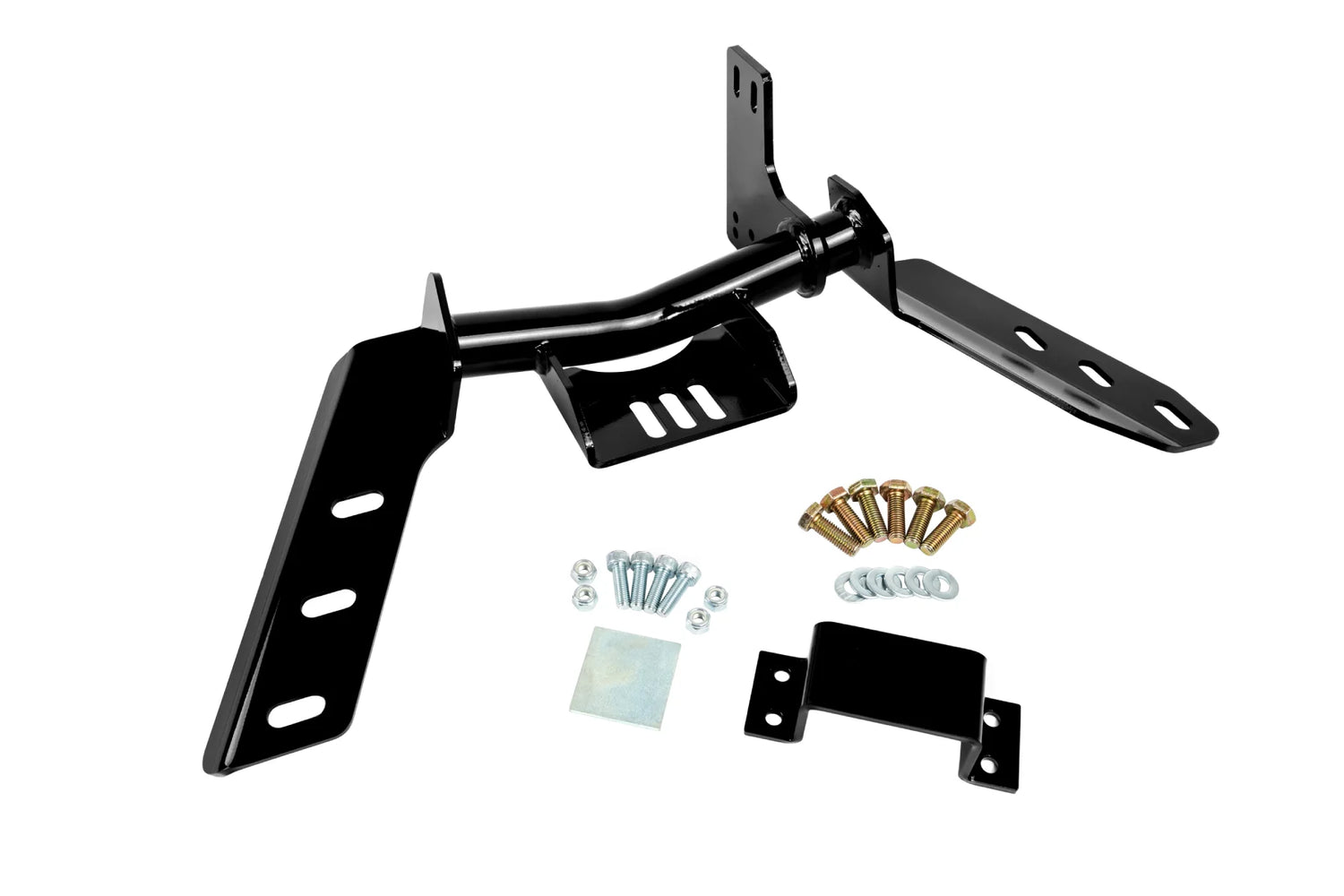

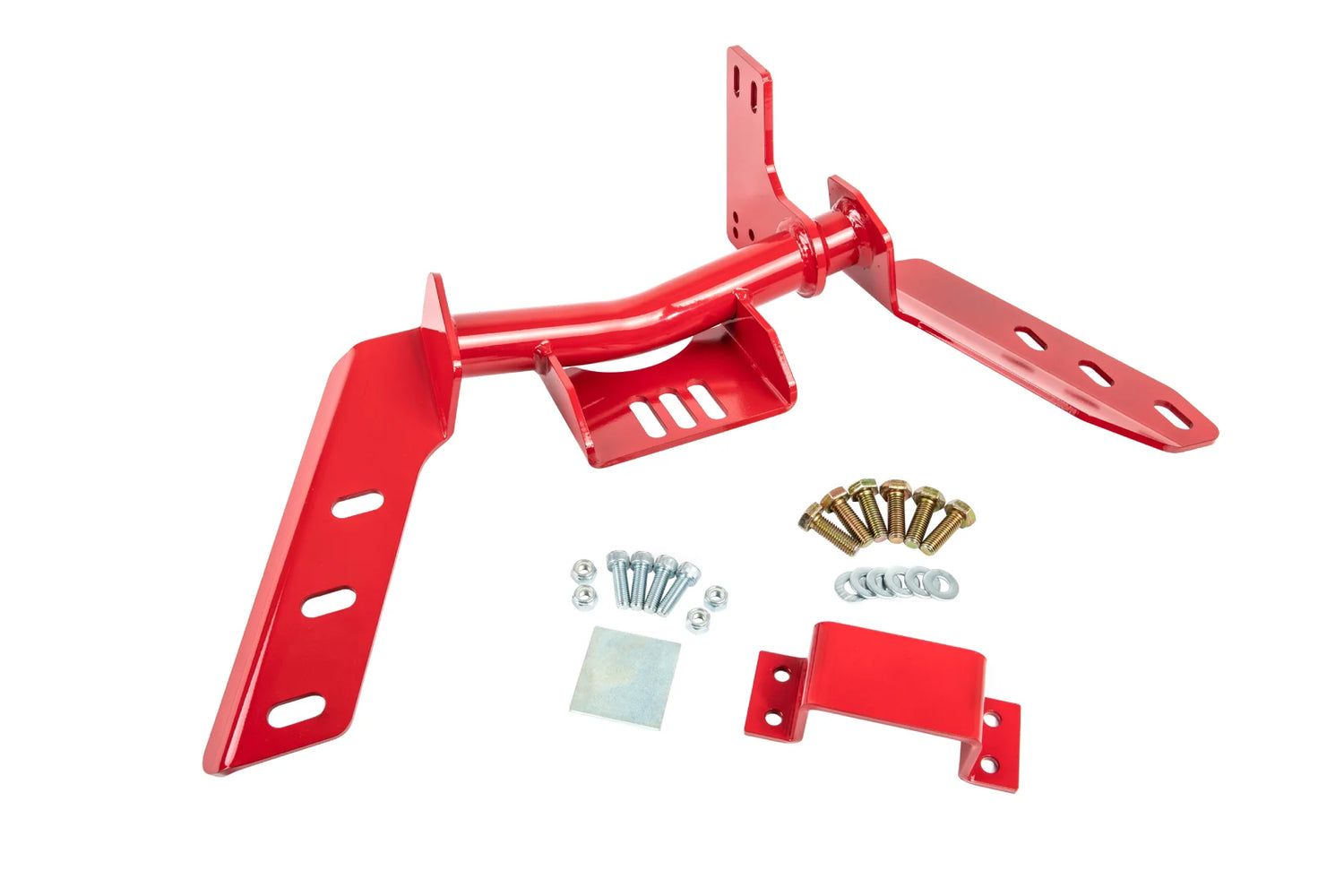

1982-1992 F-Body Torque Arm Relocation Crossmember Kit by UMI Performance, 4L60E - 2261

$269⁹⁹

Color

Product variants

Product Description

UMI’s 2261 Torque Arm Relocation Kit properly locates the 4L60E transmission while also acting as a transmission-saving torque arm mount. The 2261 is suitable for street, strip, autocross and road race use.

Note: Crossmember was designed using a 2001 4th Gen LS1 4L60e transmission. Which measured 24-3/8" face to mount.

Transmission required length measurement for any 4L60e is: 23-1/8" to 24-5/8" Face of bell to center of the trans mount.

Note: This product must be used with a solid one-piece polyurethane bushing. It will not work with the factory bushing that utilizes a two-piece design. If using a stock torque arm with this relocation kit an aftermarket polyurethane bushing must be purchased. This item can be purchased below, Item # 3004.*

PRODUCT FEATURES

Properly locates the 4L60E transmission

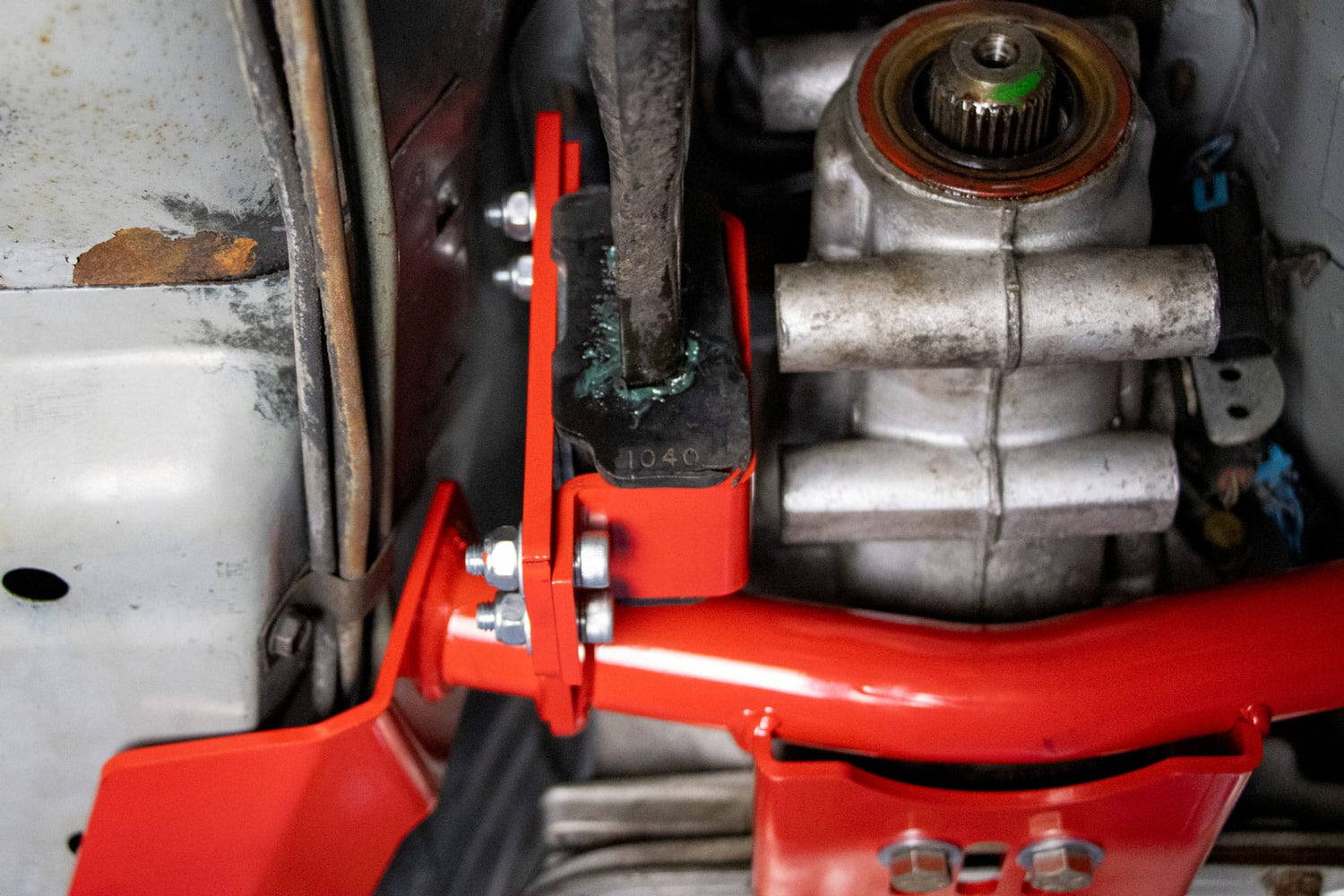

Acts as a transmission-saving torque arm mount
Suitable for street, strip, autocross, and road race use
Designed for use with a short tail TH400 with 4” tail shaft
Allows installation of a 4L60E transmission into a 82-92 F-Body
Features provisions for running a stock style torque arm
Does not reduce ground clearance
Compatible with virtually any torque arm that bolts into the stock location
Works excellently with the stock torque arm when using a 1-piece bushing

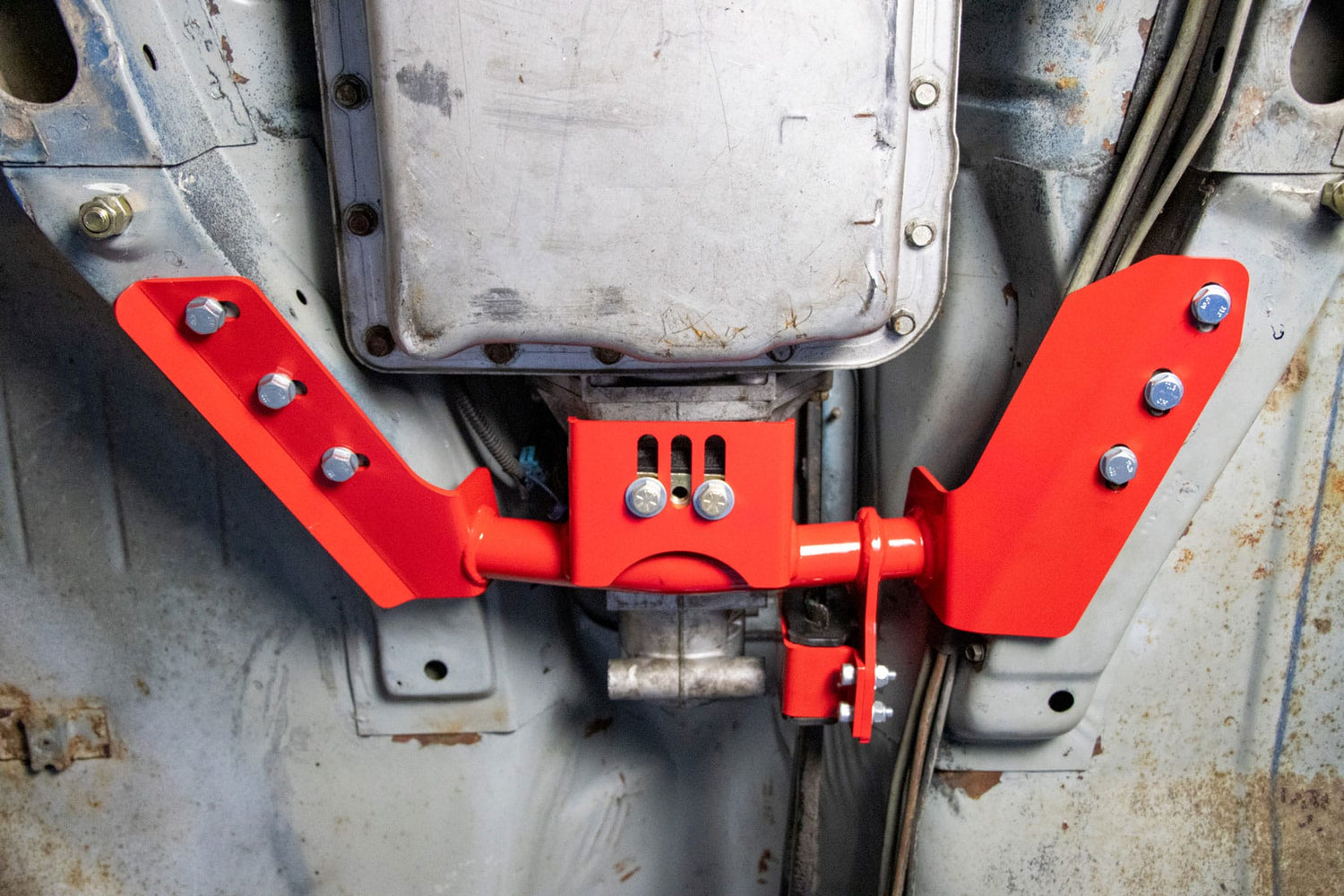

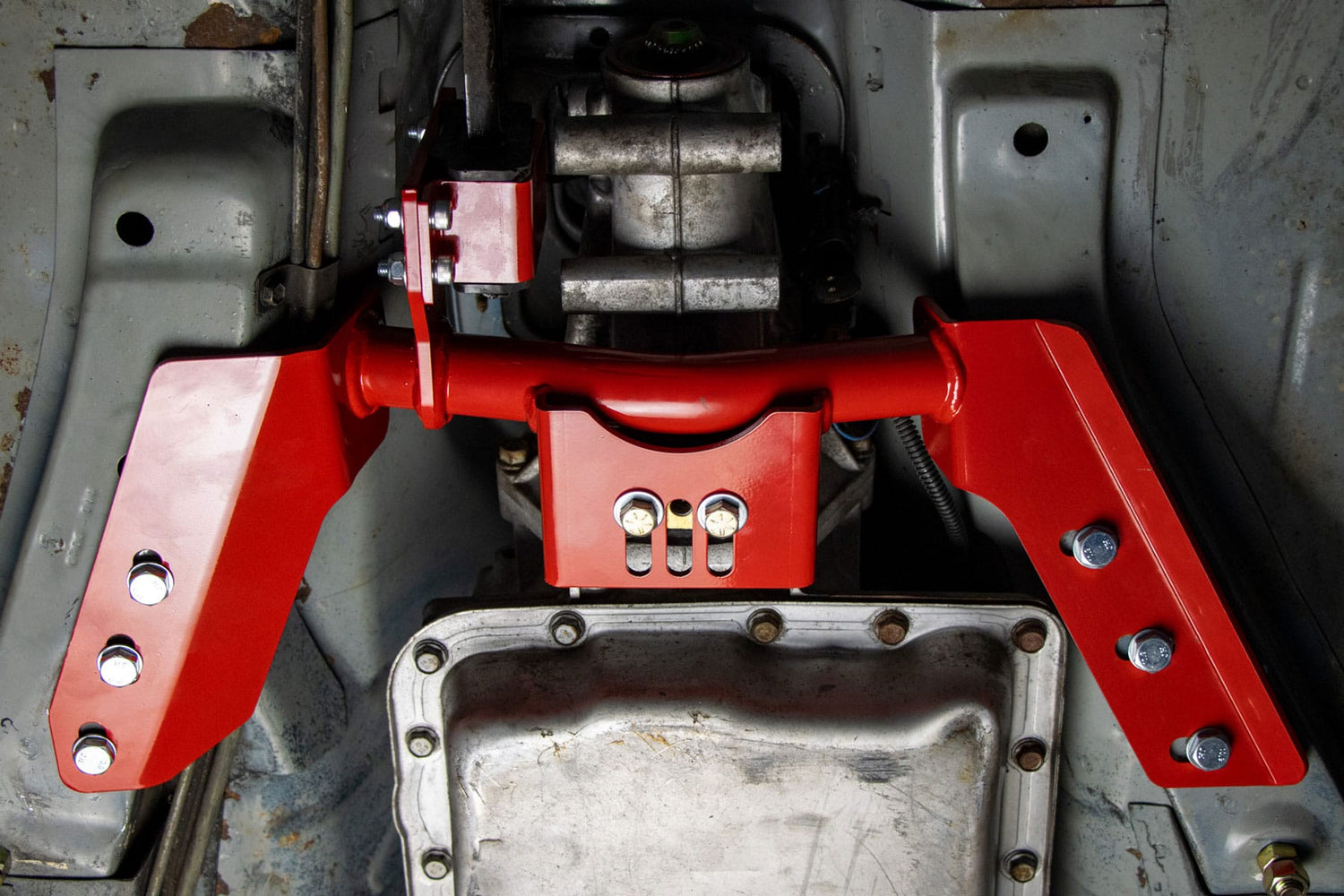

100% bolt-in installation, no drilling, cutting, or welding required
Must be used with a solid one-piece polyurethane bushing
Will not work with factory bushing utilizing a two-piece design
Aftermarket polyurethane bushing required if using a stock torque arm
